TMS320C5532AZHH10概述

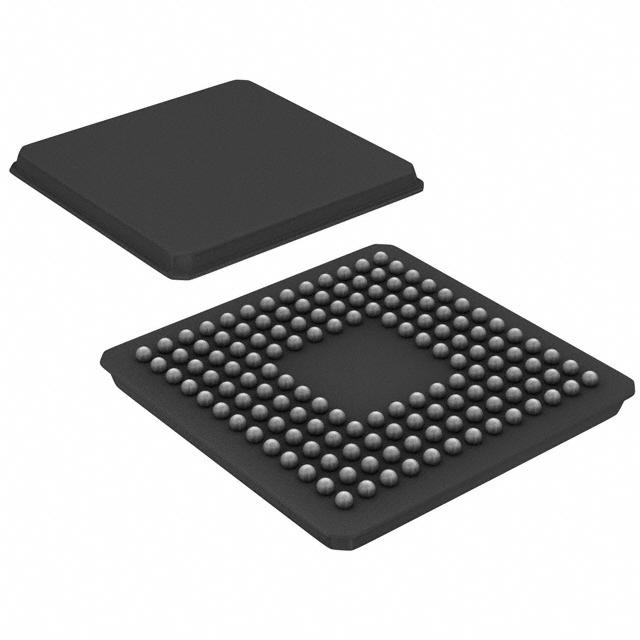

TEXAS INSTRUMENTS  TMS320C5532AZHH10  芯片, 数字信号处理器, C55X, 定点, 144BGA

These devices are members of "s C5000 fixed-point Digital Signal Processor DSP product family and are designed for low-power applications.

The fixed-point DSP is based on the TMS320C55x DSP generation CPU processor core. The C55x DSP architecture achieves high performance and low power through increased parallelism and total focus on power savings. The CPU supports an internal bus structure that is composed of one program bus, one 32-bit data read bus and two 16-bit data read buses, two 16-bit data write buses, and additional buses dedicated to peripheral and DMA activity. These buses provide the ability to perform up to four 16-bit data reads and two 16-bit data writes in a single cycle. The device also includes four DMA controllers, each with 4 channels, providing data movement for 16-independent channel contexts without CPU intervention. Each DMA controller can perform one 32-bit data transfer per cycle, in parallel and independent of the CPU activity.

The C55x CPU provides two multiply-accumulate MAC units, each capable of 17-bit x 17-bit multiplication and a 32-bit add in a single cycle. A central 40-bit arithmetic and logic unit ALU is supported by an additional 16-bit ALU. Use of the ALUs is under instruction set control, providing the ability to optimize parallel activity and power consumption. These resources are managed in the Address Unit AU and Data Unit DU of the C55x CPU.

The C55x CPU supports a variable byte width instruction set for improved code density. The Instruction Unit IU performs 32-bit program fetches from internal or external memory and queues instructions for the Program Unit PU. The PU decodes the instructions, directs tasks to the AU and DU resources, and manages the fully protected pipeline. Predictive branching capability avoids pipeline flushes on execution of conditional instructions.

The general-purpose input and output functions, along with the 10-bit SAR ADC on the TMS320C5535, provide sufficient pins for status, interrupts, and bit I/O for LCD displays, keyboards, and media interfaces. Serial media is supported through two secure digital SD peripherals, four Inter-IC Sound I2S Bus modules, one serial port interface SPI with up to four chip selects, one I2C multimaster and slave interface, and a universal asynchronous receiver/transmitter UART interface.

Additional peripherals include: a high-speed Universal Serial Bus USB 2.0 device mode only not available on TMS320C5532, a real-time clock RTC, three general-purpose timers with one configurable as a watchdog timer, and an analog phase-locked loop APLL clock generator.

In addition, the TMS320C5535 includes a tightly coupled FFT Hardware Accelerator. The tightly coupled FFT Hardware Accelerator supports 8- to 1024-point in power of 2 real and complex-valued FFTs.

Furthermore, the device includes the following three integrated LDOs to power different sections of the device.

ANA_LDO all devices provides 1.3 V to the DSP PLL VDDA_PLL, SAR, and power-management circuits VDDA_ANA.

DSP_LDO TMS320C5535 and "C5534 provides 1.3 V or 1.05 V to the DSP core CVDD, selectable on-the-fly by software as long as operating frequency ranges are observed. For lowest power operation, the programmer can shut down the internal DSP_LDO, cutting power to the DSP core CVDD while an external supply provides power to the RTC CVDDRTC and DVDDRTC. The RTC alarm interrupt or the WAKEUP pin can re-enable the internal DSP_LDO and re-apply power to the DSP core. When DSP_LDO comes out of reset, it is enabled to 1.3 V for the bootloader to operate. For the 50-MHz devices, DSP_LDO must be programmed to 1.05 V to match the core voltage, CVDD, for proper operation after reset.

USB_LDO TMS320C5535, "C5534, and "C5533 provides 1.3 V to the USB core digital USB_VDD1P3 and PHY circuits USB_VDDA1P3.

These devices are supported by the industry’s award-winning eXpressDSP, Code Composer Studio Integrated Development Environment IDE, DSP/BIOS, Texas Instruments’ algorithm standard, and the industry’s largest third-party network. Code Composer Studio IDE features code generation tools including a C Compiler and Linker, RTDX, XDS100, XDS510, XDS560 emulation device drivers, and evaluation modules. The devices are also supported by the C55x DSP library which features more than 50 foundational software kernels FIR filters, IIR filters, FFTs, and various math functions as well as chip support libraries.

TMS320C5532AZHH10中文资料参数规格
技术参数

频率 100 MHz

电源电压DC 1.24V min

针脚数 144

RAM大小 64 KB

位数 16

UART数量 1

输入/输出数 20 Input

工作温度Max 70 ℃

工作温度Min -10 ℃

封装参数

安装方式 Surface Mount

引脚数 144

封装 BGA-144

外形尺寸

封装 BGA-144

物理参数

工作温度 -10℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 3A991.a.2

数据手册

TMS320C5532AZHH10引脚图与封装图
TMS320C5532AZHH10引脚图
