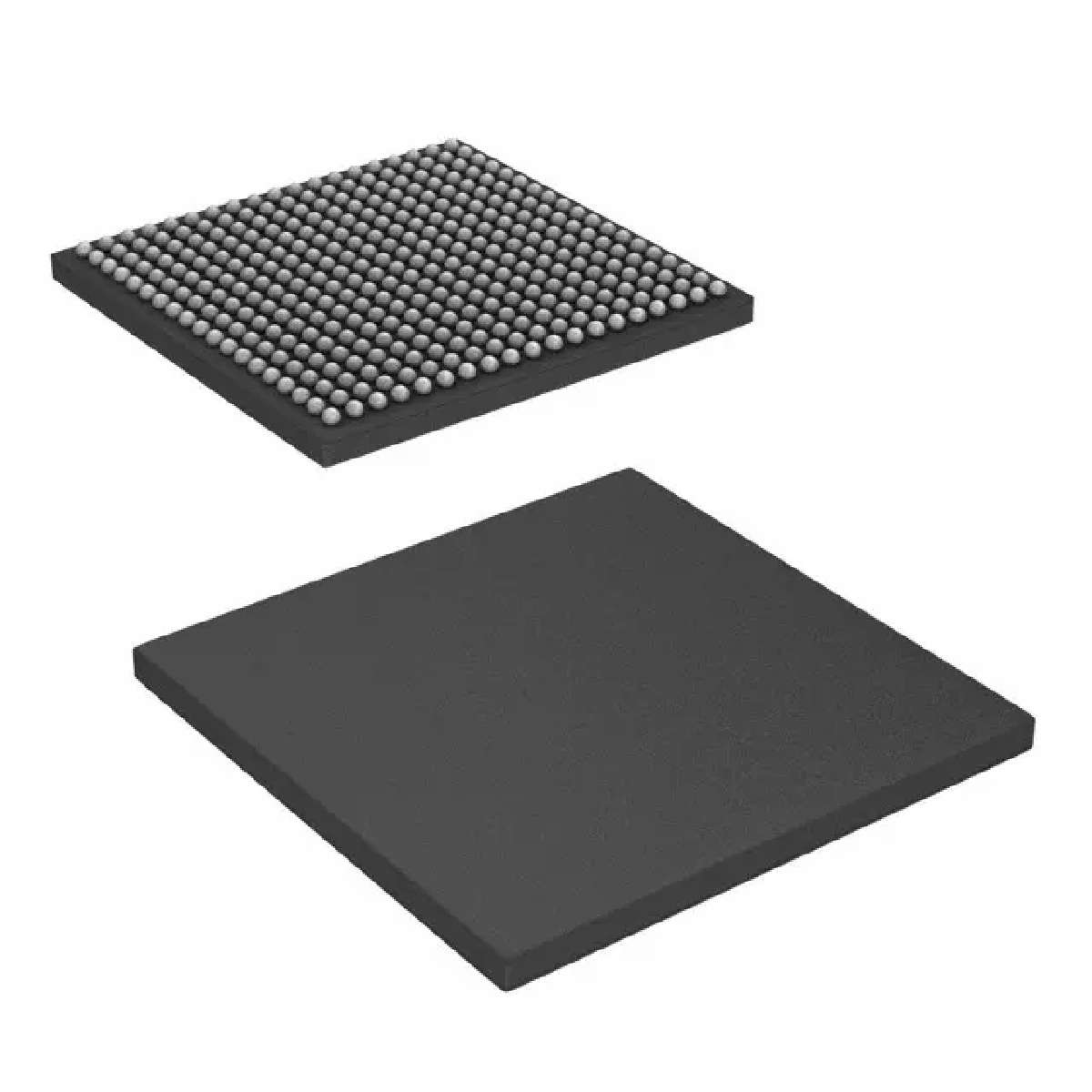

TMS320C6421ZWTQ5

定点数字信号处理器，8 位 EMIFA、16 位 DDR2 361-NFBGA

* High-Performance Digital Signal Processor C6421 * 2.5-, 2.-, 1.67, 1.43-ns Instruction Cycle Time * 400-, 500-, 600-MHz C64x+™ Clock Rate * Eight 32-Bit C64x+ Instructions/Cycle * 3200, 4000, 4800, 5600 MIPS * Fully Software-Compatible With C64x * Commercial and Automotive Q or S suffix Grades * Low-Power Device L suffix * Veloci.2™ Extensions to VelociTI™ Advanced Very-Long-Instruction-Word VLIW TMS320C64x+™ DSP Core * Eight Highly Independent Functional Units With VelociTI.2 Extensions: * Six ALUs 32-/40-Bit, Each Supports Single 32-Bit, Dual 16-Bit, or Quad 8-Bit Arithmetic per Clock Cycle * Two Multipliers Support Four 16 × 16-Bit Multiplies 32-Bit Results per Clock Cycle or Eight 8 × 8-Bit Multiplies 16-Bit Results per Clock Cycle * Load-Store Architecture With Non-Aligned Support * 64 32-Bit General-Purpose Registers * Instruction Packing Reduces Code Size * All Instructions Conditional * Additional C64x+™ Enhancements * Protected Mode Operation * Exceptions Support for Error Detection and Program Redirection * Hardware Support for Modulo Loop Auto-Focus Module Operation * C64x+ Instruction Set Features * Byte-Addressable 8-/16-/32-/64-Bit Data * 8-Bit Overflow Protection * Bit-Field Extract, Set, Clear * Normalization, Saturation, Bit-Counting * VelociTI.2 Increased Orthogonality * C64x+ Extensions * Compact 16-bit Instructions * Additional Instructions to Support Complex Multiplies * C64x+ L1/L2 Memory Architecture * 128K-Bit 16K-Byte L1P Program RAM/Cache [Flexible Allocation] * 384K-Bit 48K-Byte L1D Data RAM/Cache [Flexible Allocation] * 512K-Bit 64K-Byte L2 Unified Mapped RAM/Cache [Flexible Allocation] * Endianess: Supports Both Little Endian and Big Endian * External Memory Interfaces EMIFs * 16-Bit DDR2 SDRAM Memory Controller With 128M-Byte Address Space 1.8-V I/O * Supports up to 266-MHz data rate bus and interfaces to DDR2-400 SDRAM * Asynchronous 8-Bit-Wide EMIF EMIFA With up to 64M-Byte Address Reach * Flash Memory Interfaces * NOR 8-Bit-Wide Data * NAND 8-Bit-Wide Data * Enhanced Direct-Memory-Access EDMA Controller 64 Independent Channels * Two 64-Bit General-Purpose Timers Each Configurable as Two 32-Bit Timers * One 64-Bit Watch Dog Timer * One UART With RTS and CTS Flow Control * Master/Slave Inter-Integrated Circuit I2C Bus™
