浮点数字信号处理器 FLOATING-POINT DIGITAL SIGNAL PROCESSOR

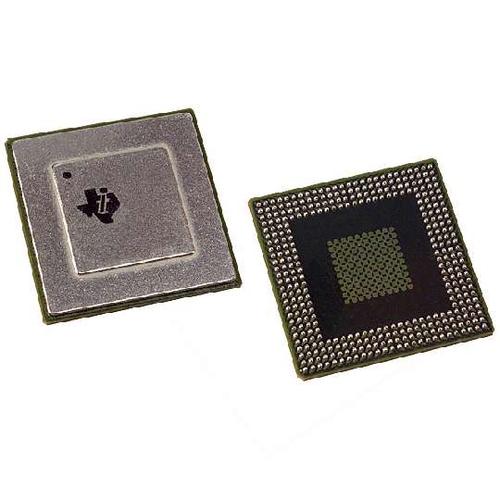

This digital signal processor from Texas Instruments is very easy to use. This DSP processor has an operating temperature range of 0 °C to 90 °C. 150 MHz is its maximum speed. This is a 32 bit processor. This device has a typical operating supply voltage of 1.8|3.3 V. Its minimum operating supply voltage of 1.71|3.14 V, while its maximum is 1.89|3.46 V. It has romless program memory.
频率 150 MHz
电源电压DC 1.80 V, 4.00 V max
时钟频率 150 MHz
RAM大小 128 KB
位数 32
工作温度Max 90 ℃
工作温度Min 0 ℃
电源电压Max 1.89 V
电源电压Min 1.71 V
安装方式 Surface Mount
引脚数 352
封装 FC-352
封装 FC-352
工作温度 0℃ ~ 90℃
产品生命周期 Active
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
ECCN代码 3A991.a.2
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TMS320C6701GJC150 TI 德州仪器 | 当前型号 | 当前型号 |
SM320C6701GJCA12EP 德州仪器 | 功能相似 | TMS320C6701GJC150和SM320C6701GJCA12EP的区别 |
TMSC6701GJC16719V 德州仪器 | 功能相似 | TMS320C6701GJC150和TMSC6701GJC16719V的区别 |
