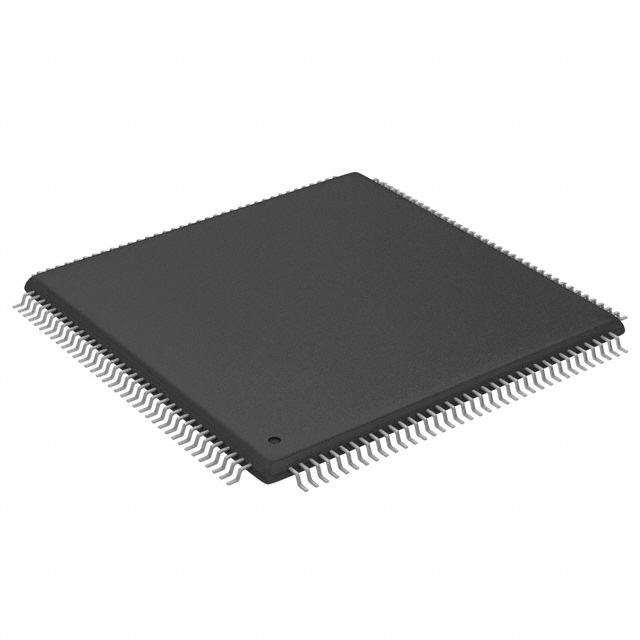

TMS320C6722BRFP250

TMS320C6722BRFP250图片1
TMS320C6722BRFP250图片2
TMS320C6722BRFP250图片3
TMS320C6722BRFP250图片4
TMS320C6722BRFP250图片5
TMS320C6722BRFP250图片6
TMS320C6722BRFP250图片7
TMS320C6722BRFP250图片8
TMS320C6722BRFP250图片9
TMS320C6722BRFP250图片10
TMS320C6722BRFP250图片11
TMS320C6722BRFP250图片12
TMS320C6722BRFP250图片13
TMS320C6722BRFP250概述

DSP,Texas Instruments德州仪器数字信号处理器是微处理器,带有一个优化的体系结构,用于数字信号处理的运算需求。### 数字信号处理器,Texas Instruments

数字信号处理器 DSP,Texas Instruments

数字信号处理器是,带有一个优化的体系结构,用于数字信号处理的运算需求。


得捷:
IC FLOATING POINT DSP 144-HTQFP


立创商城:
TMS320C6722BRFP250


德州仪器TI:
C67x floating-point DSP- up to 250MHz, McASP, 16-Bit EMIFA


欧时:
### 数字信号处理器 DSP,Texas Instruments德州仪器数字信号处理器是微处理器,带有一个优化的体系结构,用于数字信号处理的运算需求。### 数字信号处理器,Texas Instruments


贸泽:
Digital Signal Processors & Controllers - DSP, DSC Floating-Point Dig Signal Proc


艾睿:
This TMS320C6722BRFP250 digital signal processor from Texas Instruments will solve all your signal problems. This DSP processor has an operating temperature range of 0 °C to 90 °C. 250 MHz is its maximum speed. This is a 32|64 bit processor. This device is based on the C67x core architecture. This device has a typical operating supply voltage of 1.2|3.3 V. Its minimum operating supply voltage of 1.14|3.13 V, while its maximum is 1.32|3.47 V. Its rom program memory is 384KB.


安富利:
DSP Floating-Point 32-Bit/64-Bit 250MHz 2000MIPS 144-Pin HTQFP EP


Chip1Stop:
DSP Floating-Point 32-Bit/64-Bit 250MHz 2000MIPS 144-Pin HTQFP EP


Verical:
DSP Floating-Point 32bit/64bit 250MHz 2000MIPS 144-Pin HTQFP EP Tray


DeviceMart:
IC FLOATING POINT DSP 144-HTQFP


TMS320C6722BRFP250中文资料参数规格
技术参数

频率 250 MHz

电源电压DC 1.20 V

时钟频率 250 MHz

RAM大小 128 KB

FLASH内存容量 1000000 B

工作温度Max 90 ℃

工作温度Min 0 ℃

封装参数

安装方式 Surface Mount

引脚数 144

封装 TQFP-144

外形尺寸

长度 20.2 mm

宽度 20.2 mm

高度 1.2 mm

封装 TQFP-144

物理参数

工作温度 0℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 3A991.a.2

数据手册

TMS320C6722BRFP250引脚图与封装图
TMS320C6722BRFP250引脚图
TMS320C6722BRFP250封装图
TMS320C6722BRFP250封装焊盘图
在线购买TMS320C6722BRFP250
型号: TMS320C6722BRFP250
制造商: TI 德州仪器
描述:DSP,Texas Instruments 德州仪器数字信号处理器是微处理器,带有一个优化的体系结构,用于数字信号处理的运算需求。 ### 数字信号处理器,Texas Instruments
