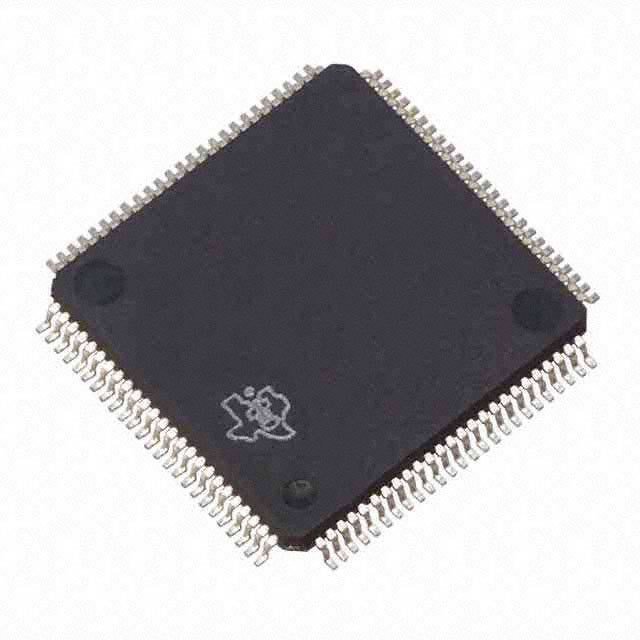

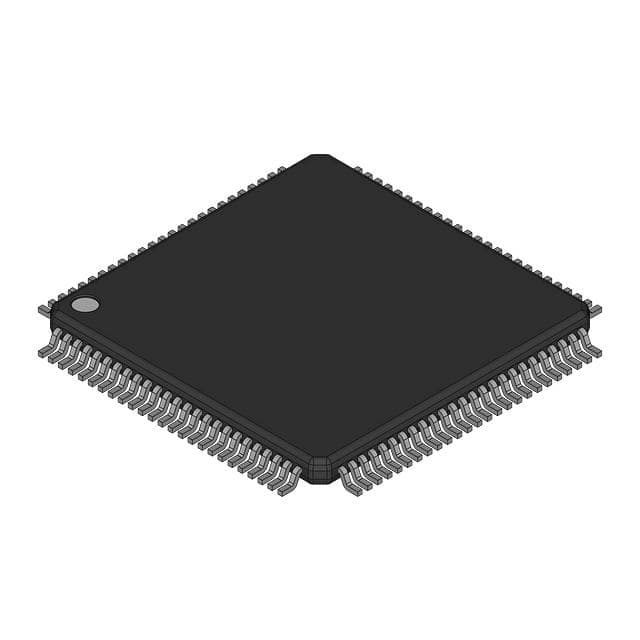

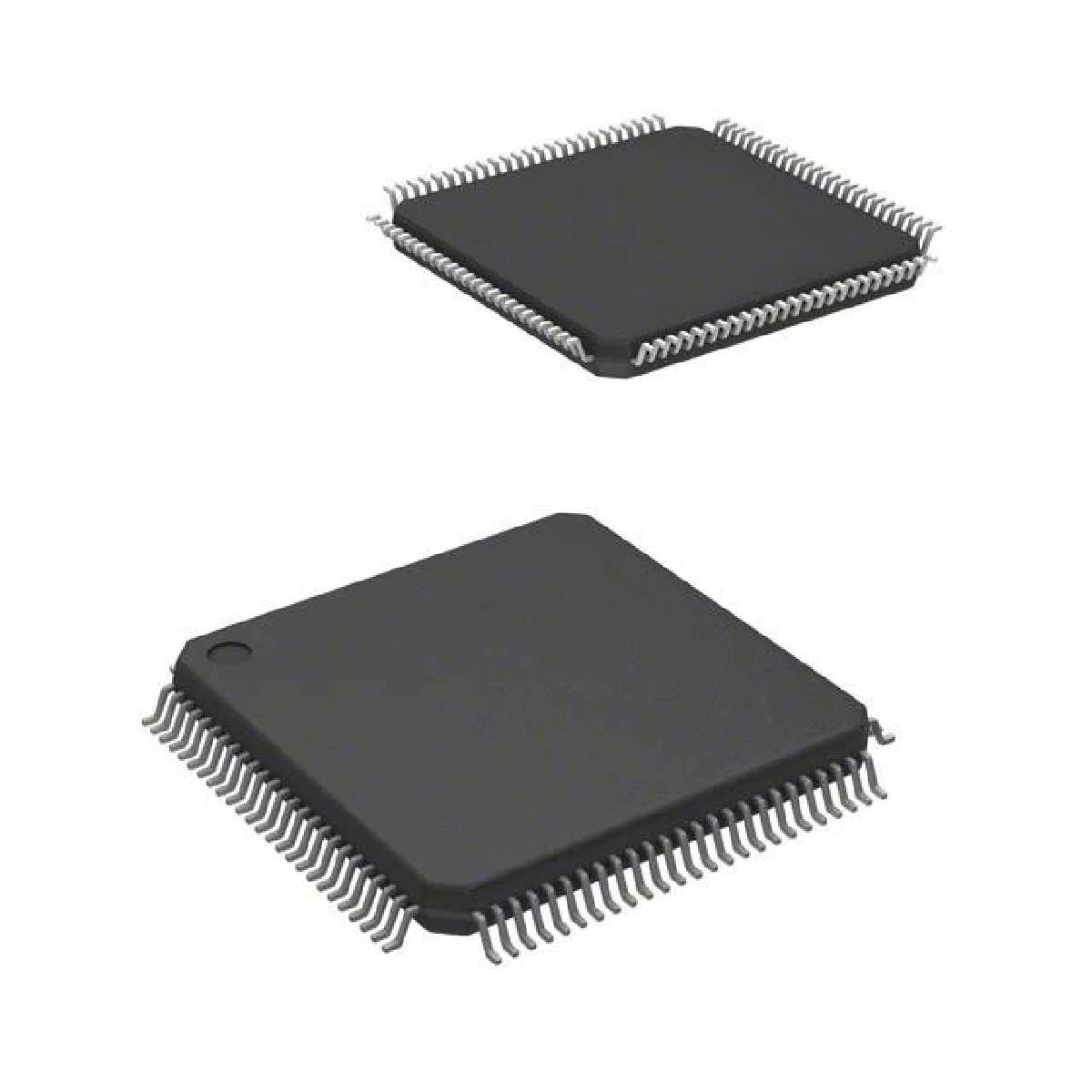

TMS320F2809PZQ

TEXAS INSTRUMENTS  TMS320F2809PZQ  微控制器, 32位, 36 KB, 100 引脚, LQFP

The is a 32-bit high-performance static CMOS DSP Microcontroller with Harvard bus architecture. The device incorporates 128K x 16 internal flash, 18K x 16 internal SRAM, 4K x 16 boot ROM, 1K x 16 one-time programmable OTP ROM, 16-channel 12-bit A/D converter and 35 individually programmable multiplexed GPIO pins with input filtering. This device also features peripherals like enhanced controller area network eCAN, serial communications interface SCI, inter-integrated-circuit I2C bus and serial peripheral interface modules SPI.

.

JTAG boundary scan support

.

16 x 16 and 32 x 32 MAC operations

.

16 x 16 Dual MAC

.

Atomic operations

.

Fast interrupt response and processing

.

Unified memory programming mode

.

Code-efficient in C/C++ and assembly

.

Dynamic PLL ratio changes supported

.

On-chip oscillator

.

Watchdog timer module

.

Any GPIO A pin can be connected to one of the three external core interrupts

.

Peripheral interrupt expansion PIE block

.

Endianness - little endian

.

128-bit Security key/lock

.

Three 32-bit CPU timers

.

Up to 16 PWM outputs

.

Up to 6 HRPWM outputs with 150-ps MEP resolution

.

Up to four capture inputs

.

Up to two quadrature encoder interfaces

.

Up to six 32-bit/Six 16-bit Timers
