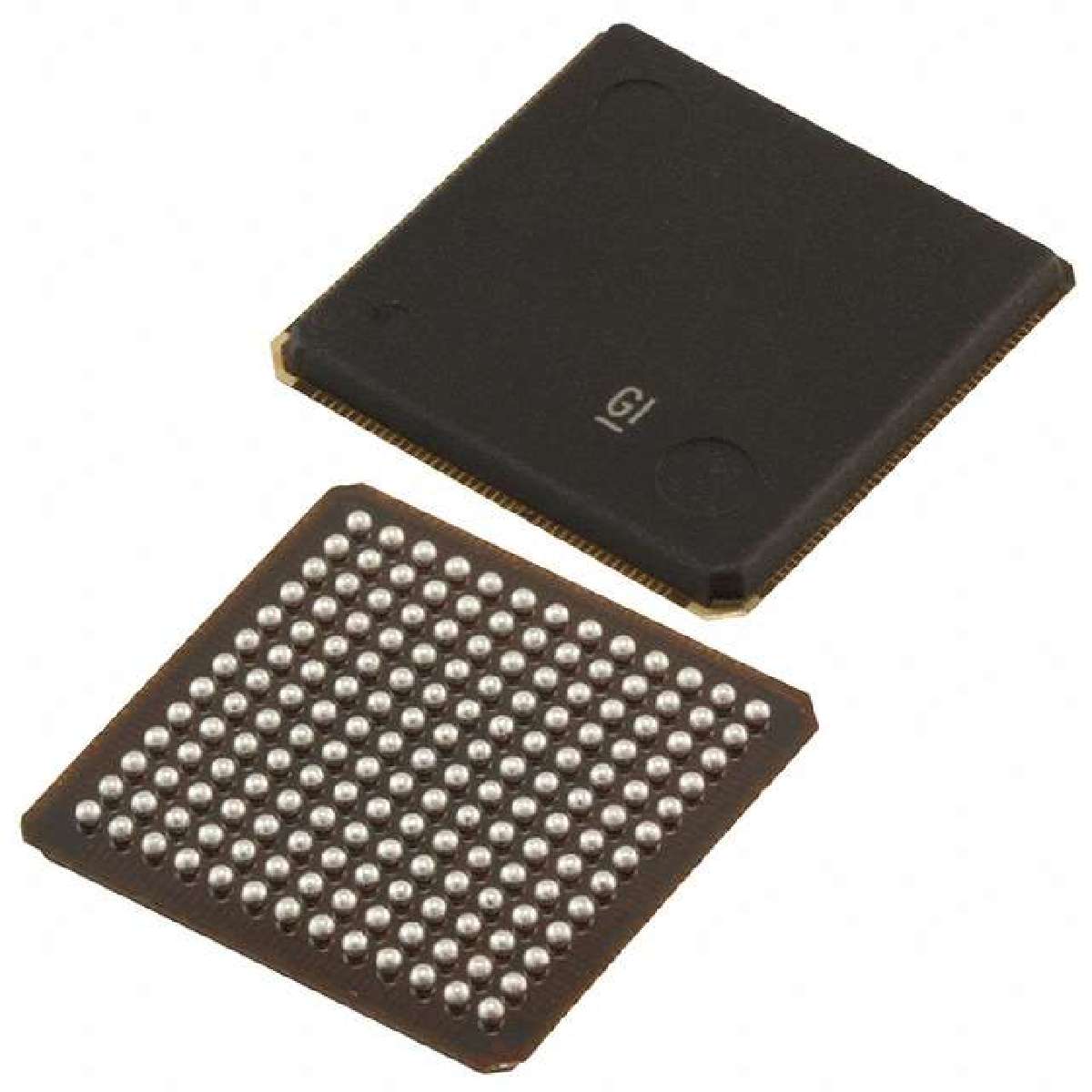

TMS320VC5441ZGU

数字信号处理器和控制器 - DSP, DSC Digital Signal Proc

* 532-MIPS Quad-Core DSP Consisting of Four Independent Subsystems * Each Core has an Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Bus * 40-Bit Arithmetic Logic Unit ALU Including a 40-Bit Barrel-Shifter and Two 40-Bit Accumulators Per Core * Each Core has a 17-Bit × 17-Bit Parallel Multiplier Coupled to a 40-Bit Adder for Non-Pipelined Single-Cycle Multiply/Accumulate MAC Operations * Each Core has a Compare, Select, and Store Unit CSSU for the Add/Compare Selection of the Viterbi Operator * Each Core has an Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle * Each Core has Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units ARAUs * Total 640K-Word × 16-Bit Dual-Access On-Chip RAM 256K-Word x 16-Bit Shared Memory and 96K-Word x 16-Bit Local Memory Per Subsystem * Single-Instruction Repeat and Block-Repeat Operations * Instructions With 32-Bit Long Word Operands * Instructions With 2 or 3 Operand Reads * Fast Return From Interrupts * Arithmetic Instructions With Parallel Store and Parallel Load * Conditional Store Instructions * Output Control of CLKOUT * Output Control of Timer Output TOUT * Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions * Dual 1.6-V Core and 3.3-V I/O Power Supplies for Low-Power, Fast Operations * 7.5-ns Single-Cycle Fixed-Point Instruction * Twenty-Four Channels of Direct Memory Access DMA for Data Transfers With No CPU Loading Six Channels Per Subsystem * Twelve Multichannel Buffered Serial Ports McBSPs, Each With 128-Channel Selection Capability Three McBSPs per Subsystem * 16-Bit Host-Port Interface HPI * Software-Programmable Phase-Locked Loop PLL Provides Several Clocking Options Requires External TTL Oscillator * On-Chip Scan-Based Emulation Logic, IEEE Standard 1149.1 JTAG Boundary-Scan Logic * Four Software-Programmable Timers One Per Subsystem * Four Software-Programmable Watchdog Timers One Per Subsystem * Sixteen General-Purpose I/Os Four Per Subsystem * Provided in 176-pin Plastic Low-Profile Quad Flatpack LQFP Package PGF Suffix * Provided in 169-ball MicroStar BGA™ Package GGU Suffix
