TMS320VC5421GGU200

DSP Fixed-Point 16Bit 200MHz 200MIPS 144Pin BGA MICROSTAR

Introduction

This section describes the main features, gives a brief functional overview of the TMS320VC5421, lists the pin assignments, and provides a signal description table. This data manual also provides a detailed description section, electrical specifications, parameter measurement information, and mechanical data about the available packaging.

Description

The TMS320VC5421 fixed-point digital signal processor DSP is a dual-core solution running at 200-MIPS performance. The 5421 consists of two DSP subsystems capable of core-to-core communications and a 128K-word zero-wait-state on-chip program memory shared by the two DSP subsystems. Each subsystem consists of one 54x DSP core, 32K-word program/data DARAM, 32K-word data SARAM, 2K-word ROM, three multichannel serial interfaces, xDMA logic, one timer, one APLL, and other miscellaneous circuitry.

TMS320VC5421 Features

• 200-MIPS Dual-Core DSP Consisting of Two Independent Subsystems

• Each Core Has an Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Bus

• 40-Bit Arithmetic Logic Unit ALU Including a 40-Bit Barrel-Shifter and Two 40-Bit Accumulators Per Core

• Each Core Has a 17-Bit × 17-Bit Parallel Multiplier Coupled to a 40-Bit Adder for Non-Pipelined Single-Cycle Multiply/Accumulate MAC Operations

• Each Core Has a Compare, Select, and Store Unit CSSU for the Add/Compare Selection of the Viterbi Operator

• Each Core Has an Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle

• Each Core Has Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units ARAUs

• 16-Bit Data Bus With Data Bus Holder Feature

• 512K-Word × 16-Bit Extended Program Address Space

• Total of 256K-Word × 16-Bit Dual- and Single-Access On-Chip RAM 128K-Word x 16-Bit Two-Way Shared Memory

• Single-Instruction Repeat and Block-Repeat Operations

• Instructions With 32-Bit-Long Word Operands

• Instructions With Two or Three Operand Reads

• Fast Return From Interrupts

• Arithmetic Instructions With Parallel Store and Parallel Load

• Conditional Store Instructions

• Output Control of CLKOUT

• Output Control of TOUT

• Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions

• Dual 1.8-V Core and 3.3-V I/O Power Supplies for Low-Power, Fast Operations

• 10-ns Single-Cycle Fixed-Point Instruction

• Interprocessor Communication via Two Internal 8-Element FIFOs

• Twelve Channels of Direct Memory Access DMA for Data Transfers With No CPU Loading Six Channels Per Subsystem With External Access

• Six Multichannel Buffered Serial Ports McBSPs With 128-Channel Selection Capability Three McBSPs per Subsystem

• 16-Bit Host-Port Interface HPI Multiplexed With External Memory Interface Pins

• Software-Programmable Phase-Locked Loop APLL Provides Several Clocking Options Requires External Oscillator

• On-Chip Scan-Based Emulation Logic, IEEE Standard 1149-1 JTAG Boundary Scan Logic

• Two Software-Programmable Timers One Per Subsystem

• Software-Programmable Wait-State Generator 14 Wait States Maximum

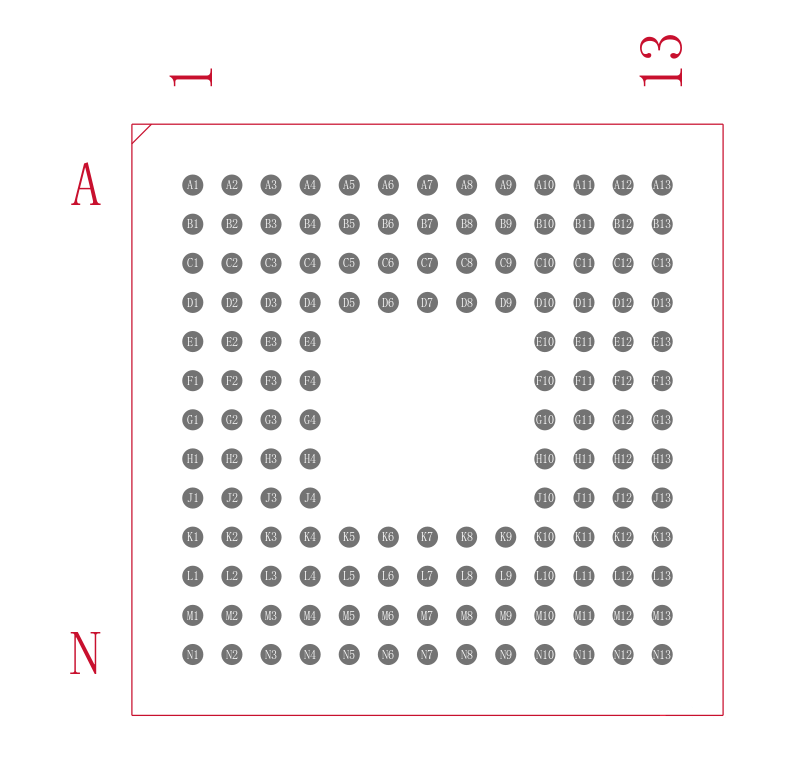

• Provided in 144-pin MicroStar BGA™ Ball Grid Array GGU Suffix and 144-pin Low-Profile Quad Flatpack LQFP PGE Suffix Packages
