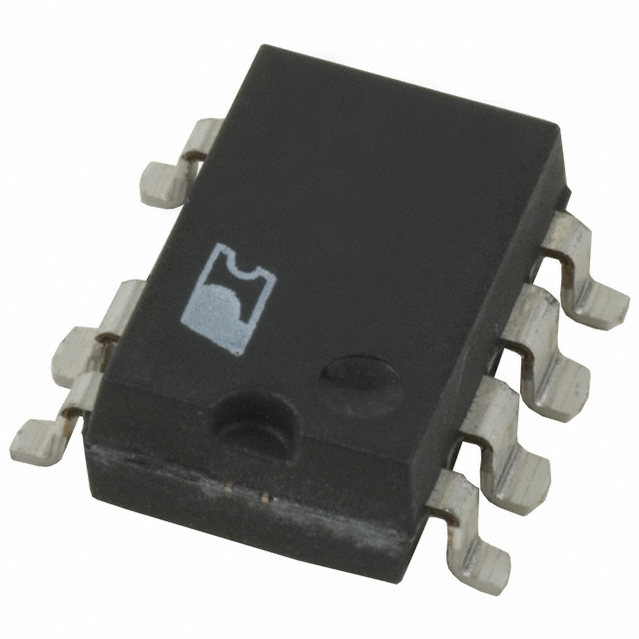

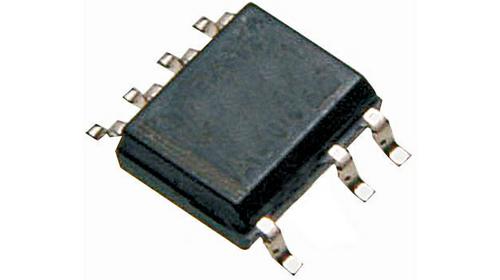

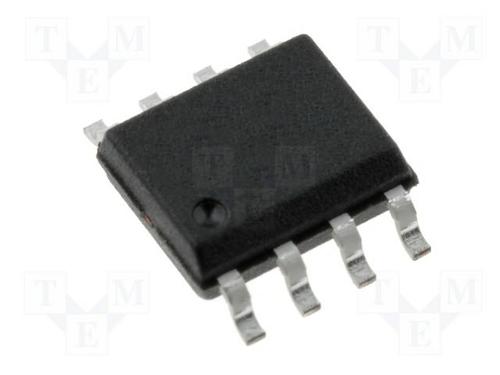

POWER INTEGRATIONS TNY266GN 芯片, 离线开关
The is a 10W enhanced energy efficient low power Off-Line Switcher fully integrated auto-restart circuit safely limits output power during fault conditions such as output short-circuit or open loop and reducing component count. TinySwitch-II integrates a 700V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding and associated circuitry. In addition the TinySwitch-II device incorporates auto-restart, line under-voltage sense and frequency jittering. An innovative design minimizes audio frequency components in the simple ON/OFF control scheme to practically eliminate audible noise with standard taped/varnished transformer construction.
频率 132 kHz
电源电压DC 265 V
额定功率 15 W
输出接口数 1
输出电压 700 V
输出电流 560 mA
击穿电压 700 V
供电电流 265 µA
针脚数 7
调节输出数 1
输出功率 9.5 W
开关频率 132 kHz
占空比 65 %
最大占空比 68 %
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 265 VAC
输入电压 85.265 V
安装方式 Surface Mount
引脚数 8
封装 SMD-8
封装 SMD-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 Audio, Computers & Computer Peripherals, 消费电子产品, Consumer Electronics, 音频, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
