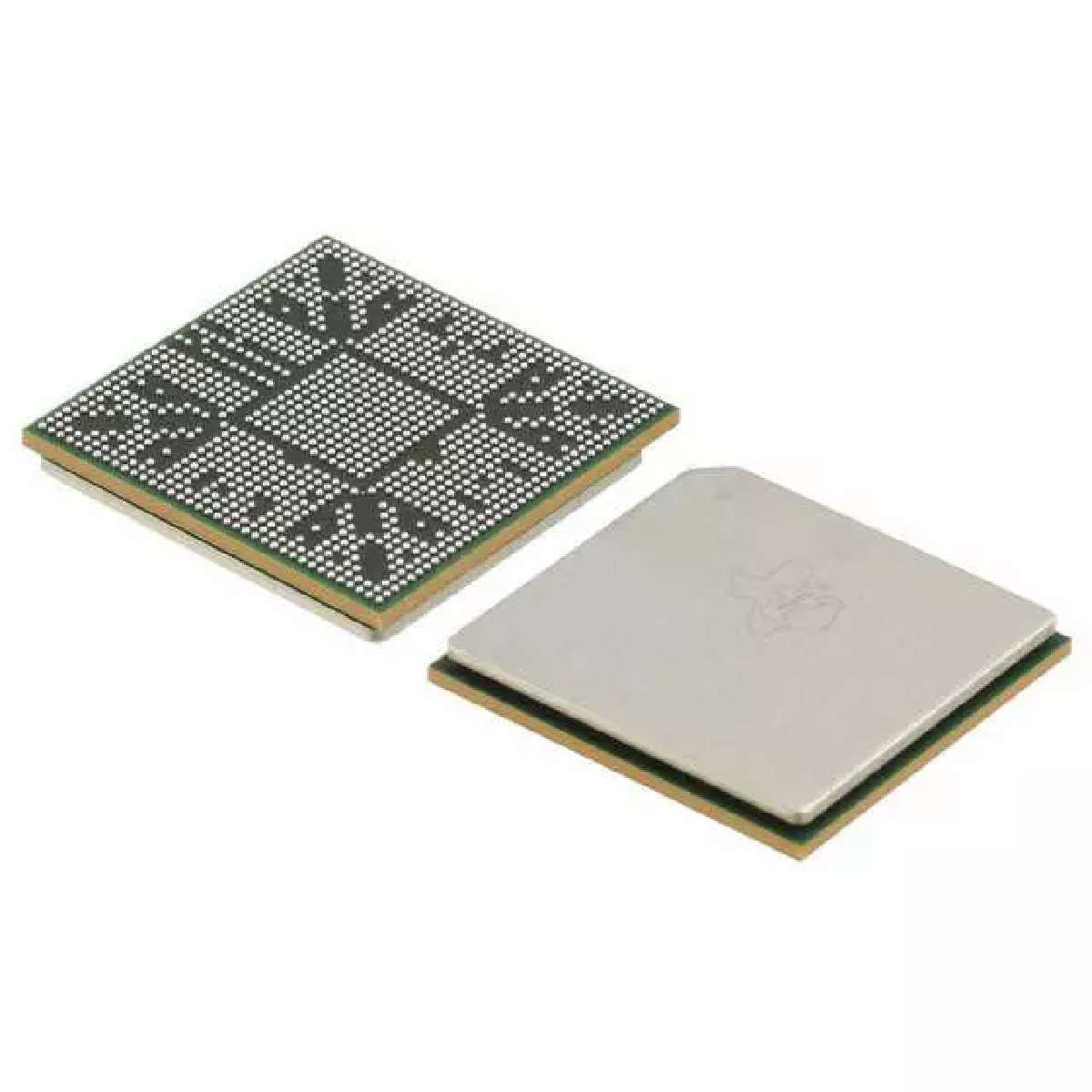

TEXAS INSTRUMENTS TMS320DM8168BCYG2 芯片, 视频处理器, 800MHZ, FCBGA-1031
This application processor from Texas Instruments will exceed your processing needs. This part has an operating temperature range of 0 °C to 95 °C. It has a maximum clock speed of 1100 MHz. This device is based on the ARM Cortex A8 core architecture. It has romless program memory. Its Ethernet interface type is mii and supports up to 10Mbps/100Mbps/1000Mbps. This device has a minimum operating supply voltage of 0.8 V and a maximum of 1.05 V. This device utilizes 0.04um technology.
电源电压DC 1.05V max
针脚数 1031
RAM大小 64 KB
UART数量 3
工作温度Max 95 ℃
工作温度Min 0 ℃
电源电压Max 1.05 V
安装方式 Surface Mount
引脚数 1031
封装 FCBGA-1031
高度 2.81 mm
封装 FCBGA-1031
工作温度 0℃ ~ 95℃ TJ
产品生命周期 Obsolete
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 5A002
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TMS320DM8168BCYG2 TI 德州仪器 | 当前型号 | 当前型号 |
TMS320DM8168CCYG2 德州仪器 | 完全替代 | TMS320DM8168BCYG2和TMS320DM8168CCYG2的区别 |
