STMICROELECTRONICS TS941ILT 运算放大器, 单路, 10 kHz, 1个放大器, 0.0045 V/µs, 2.5V 至 10V, SOT-23, 5 引脚
The is an ultra-micropower single Operational Amplifier with CMOS inputs and rail-to-rail output. The TS94x series op-amp characterized for 2.5 to 10V operation over -40 to +85°C temperature range. They exhibit excellent consumption -1.2µA, while featuring 10kHz gain bandwidth product, 1.5mA output capability and output rail-to-rail operation -2.85V typical at 3V with RL=10k. The TS94x op-amp is ideal for battery-powered systems, where very low supply current and output rail-to-rail are required. Their very low -1pA typical input bias current and constant supply current over supply voltage enhance TS94x"s performance near the end of the battery charge or battery life.
- .
- Latch-up immunity class A
- .
- 2kV ESD Protection
- .
- 1pA Ultralow input bias current
- .
- 1.2µA Micropower consumption
- .
- 7µV/°C Input offset voltage drift
输出电流 5mA @5V
供电电流 1.2 µA
电路数 1
通道数 1
针脚数 5
共模抑制比 60 dB
带宽 10 kHz
转换速率 4.50 mV/μs
增益频宽积 0.01 MHz
输入补偿电压 10 mV
输入偏置电流 1 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 0.01 MHz
共模抑制比Min 60 dB
电源电压 2.5V ~ 10V
电源电压Max 10 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 5

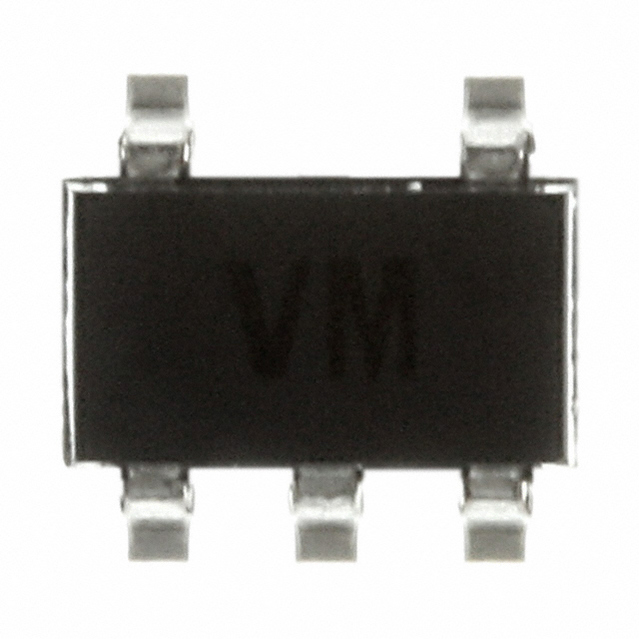

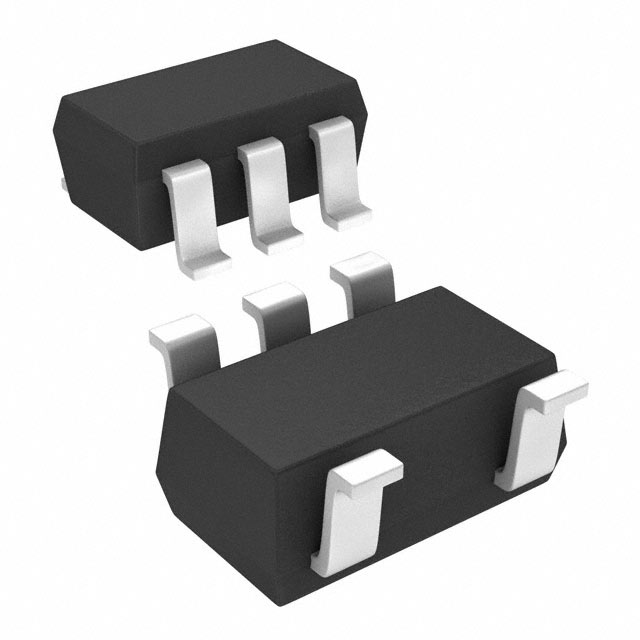

封装 SOT-23-5
长度 3 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, Communications & Networking, Portable Devices, 便携式器材, Test & Measurement, 测试与测量, 传感与仪器, Clock & Timing, 时钟与计时, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
