TPSE686M020R0150

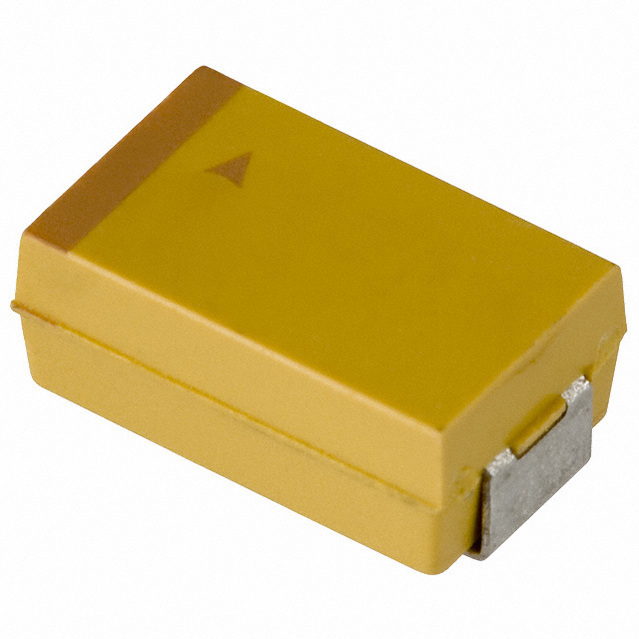

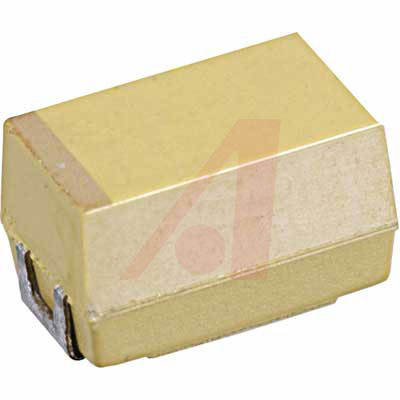

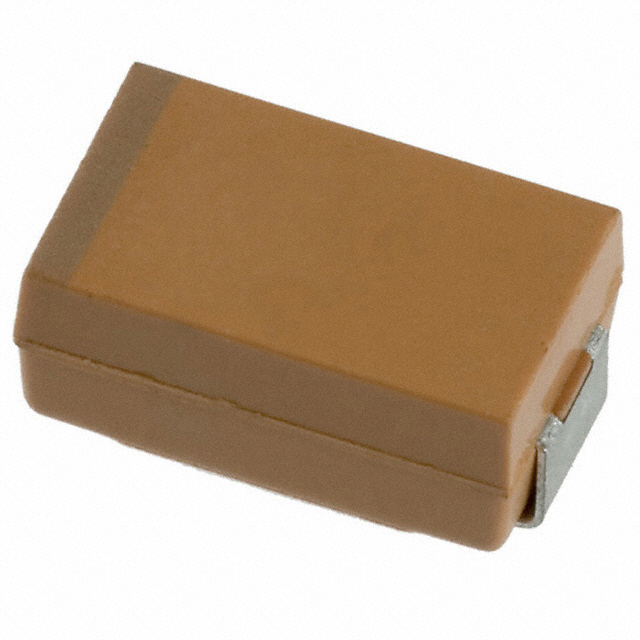

AVX  TPSE686M020R0150  表面贴装钽电容, TPS系列, 68 µF, ± 20%, 20 V, 2917 [7343 公制], E

TPS surface mount products have inherently low ESR equivalent series resistance and are capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power.

立创商城:
68uF ±20% 20V

得捷:
CAP TANT 68UF 20% 20V 2917

艾睿:
This TPSE686M020R0150 tantalum solid capacitor from AVX has a high capacitance for its size and is designed keeping a low footprint in mind. It can withstand a voltage of 20 VDC. Its leakage current is 13.6 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 68uF. It has a tolerance of 20%. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep.

Allied Electronics:
Capacitor; Tantalum; Cap 68 uF; Tol 20%; Vol-Rtg 20 VDC; SMT; 7343H; ESR 150 mOhms

安富利:
Cap Tant Solid 68uF 20V E CASE 20% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.15 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 68uF 20V E CASE 20% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.15 Ohm 125A？A℃ T/R

Verical:
Cap Tant Solid 68uF 20V E CASE 20% 7.3 X 4.3 X 4.1mm Inward L SMD 7343-43 0.15 Ohm 125C T/R

Newark:
# AVX  TPSE686M020R0150  Surface Mount Tantalum Capacitor, 68 µF, 20 V, TPS Series, ± 20%, 2917 [7343 Metric]

Win Source:
CAP TANT 68UF 20V 20% 2917
