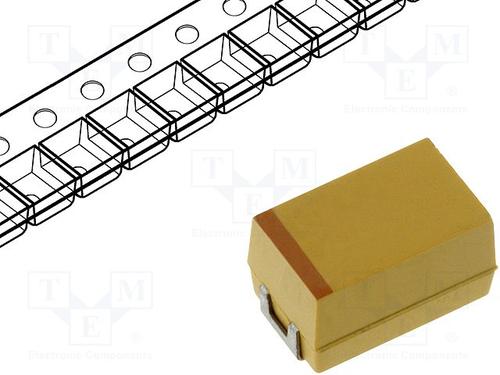

AVX TPSE477K010R0100 表面贴装钽电容, TPS系列, 470 µF, ± 10%, 10 V, 2917 [7343 公制], E
The higher stability of this solid tantalum capacitor from compared to its aluminum counterpart allows it to keep its properties through a variety of operating conditions. It can withstand a voltage of 10 VDC. Its leakage current is 47 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep. Its capacitance value is 470uF.
额定电压DC 10.0 V
工作电压 10 VDC
电容 470 µF
等效串联电阻ESR 100 mΩ
容差 ±10 %
纹波电流 0.514 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4.1 mm
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 400
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSE477K010R0100 AVX 艾维克斯 | 当前型号 | 当前型号 |
TPSE477K010H0100 艾维克斯 | 完全替代 | TPSE477K010R0100和TPSE477K010H0100的区别 |
TPSE477K010R0045 艾维克斯 | 类似代替 | TPSE477K010R0100和TPSE477K010R0045的区别 |
