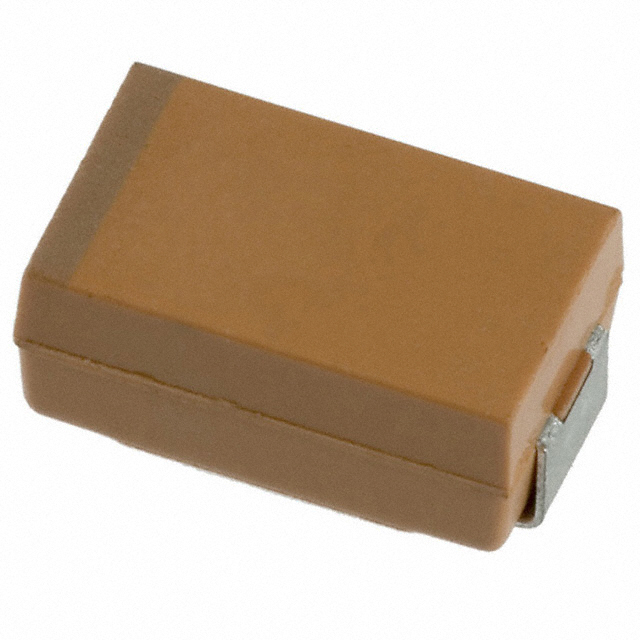

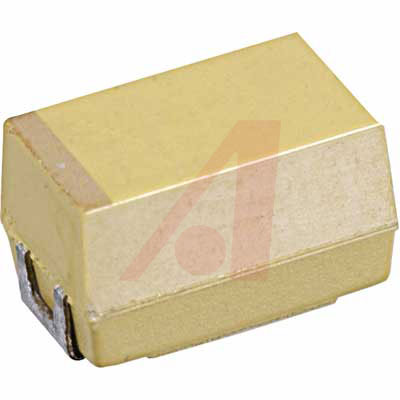

TPSE477M010R0045

AVX  TPSE477M010R0045  表面贴装钽电容, TPS系列, 470 µF, ± 20%, 10 V, 2917 [7343 公制], E

TPS surface mount products have inherently low ESR equivalent series resistance and are capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power.

欧时:
Capacitor 2917 470uF 10Vdc 20% 45 mohm

e络盟:
表面贴装钽电容, 470 µF, 10 V, 2917 [7343 公制], TPS系列, ± 20%, -55 °C

艾睿:
Tantalum solid when used in capacitors yields high capacitance with a low footprint design, this TPSE477M010R0045 capacitor from AVX does just that. It can withstand a voltage of 10 VDC. Its leakage current is 47 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 20%. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep. Its capacitance value is 470uF.

Allied Electronics:
Capacitor; Tantalum; Cap 470 uF; Tol 20%; Vol-Rtg 10 VDC; SMT; 7343H; ESR 45 mOhms

安富利:
Cap Tant Solid 470uF 10V E CASE 20% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.045 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 470uF 10V E CASE 20% 7.3 X 4.3 X 4.1mm Inward L SMD 7343-43 0.045 Ohm 125C T/R

Verical:
Cap Tant Solid 470uF 10V E CASE 20% 7.3 X 4.3 X 4.1mm Inward L SMD 7343-43 0.045 Ohm 125C T/R

Newark:
# AVX  TPSE477M010R0045  Surface Mount Tantalum Capacitor, 470 µF, 10 V, TPS Series, ± 20%, 2917 [7343 Metric]
