TPSE226K035R0300

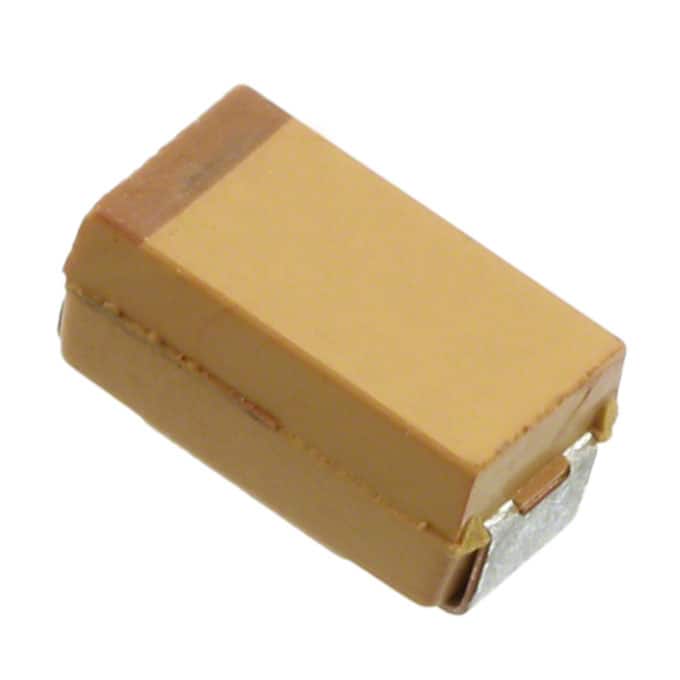

AVX  TPSE226K035R0300  表面贴装钽电容, TPS系列, 22 µF, ± 10%, 35 V, 2917 [7343 公制], E

钽器

立创商城:
22uF ±10% 35V

欧时:
Tantalum Capacitor 2917 22uF 35Vdc 10%

e络盟:
表面贴装钽电容, 22 µF, 35 V, 2917 [7343 公制], TPS系列, ± 10%, -55 °C

艾睿:
Cap Tant Solid 22uF 35V E CASE 10% 7.3 X 4.3 X 4.1mm Inward L SMD 7343-43 0.3 Ohm 125°C T/R

Allied Electronics:
Capacitor; Tantalum; Cap 22 uF; Tol 10%; Vol-Rtg 35 VDC; SMT; 7343H; Low ESR; Tape&Reel

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.

TME:

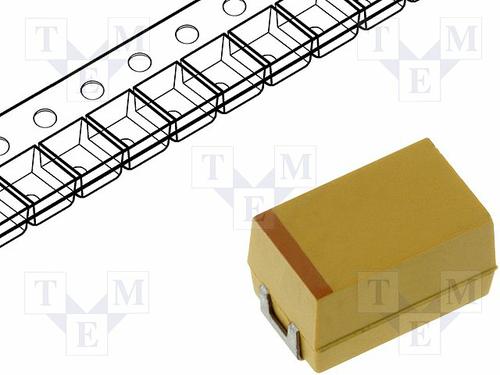

Capacitor: tantalum; low ESR; 22uF; 35VDC; Case: E; 2917; ESR:300mΩ

Verical:
Cap Tant Solid 22uF 35V E CASE 10% 7.3 X 4.3 X 4.1mm Inward L SMD 7343-43 0.3 Ohm 125C T/R

Newark:
# AVX  TPSE226K035R0300  Surface Mount Tantalum Capacitor, 22 µF, 35 V, TPS Series, ± 10%, 2917 [7343 Metric]

儒卓力:
**TC 22uF 35V 10% Case E 300mOhm **

Win Source:
CAP TANT 22UF 35V 10% 2917
