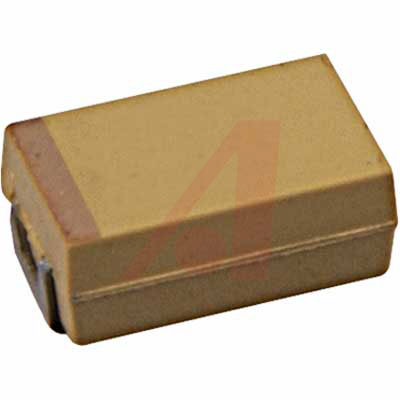

AVX TPSD226M025R0200 表面贴装钽电容, TPS系列, 22 µF, ± 20%, 25 V, 2917 [7343 公制], D
TPS surface mount products have inherently low ESR equivalent series resistance and are capable of higher ripple current handling, producing lower ripple voltages, less power and heat dissipation than standard product for the most efficient use of circuit power.
欧时:
Tantalum Capacitor 2917 22uF 25Vdc 20%
立创商城:
22uF ±20% 25V
e络盟:
表面贴装钽电容, 22 µF, 25 V, 2917 [7343 公制], TPS系列, ± 20%, -55 °C
艾睿:
Do you need a capacitor for a sample and hold circuit? Then use this TPSD226M025R0200 solid tantalum capacitor from AVX for its low leakage current! It can withstand a voltage of 25 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 5.5 μA. Its capacitance value is 22uF. This product is 7.3 mm long, 2.9 mm tall and 4.3 mm deep. It has a tolerance of 20%.
Allied Electronics:
Capacitor; Tantalum; Cap 22 uF; Tol 20%; Vol-Rtg 25 VDC; SMT; 7343; ESR 200 mOhms; CT
安富利:
Cap Tant Solid 22uF 25V D CASE 20% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.2 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 22uF 25V D CASE 20% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.2 Ohm 125A?A℃ T/R
Verical:
Cap Tant Solid 22uF 25V D CASE 20% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.2 Ohm 125C T/R
Newark:
# AVX TPSD226M025R0200 Surface Mount Tantalum Capacitor, 22 µF, 25 V, TPS Series, ± 20%, 2917 [7343 Metric]
Win Source:
22μF Molded Tantalum Capacitors 25V 2917 7343 Metric 200 mOhm 0.287" L x 0.169" W 7.30mm x 4.30mm
额定电压DC 25.0 V
电容 22 µF
等效串联电阻ESR 200 mΩ
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装公制 7343-31
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 2.9 mm
封装公制 7343-31
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSD226M025R0200 AVX 艾维克斯 | 当前型号 | 当前型号 |
TPSD226M025S0200 艾维克斯 | 完全替代 | TPSD226M025R0200和TPSD226M025S0200的区别 |
TPSD226K025R0200 艾维克斯 | 类似代替 | TPSD226M025R0200和TPSD226K025R0200的区别 |
TPSD226K035R0200 艾维克斯 | 类似代替 | TPSD226M025R0200和TPSD226K035R0200的区别 |
