TPSD107K010R0100

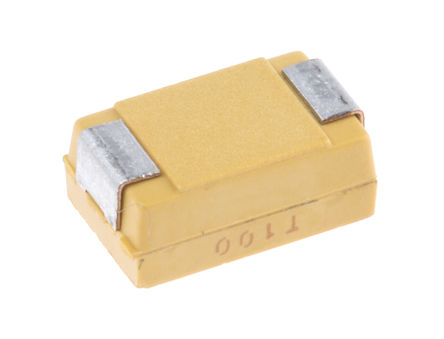

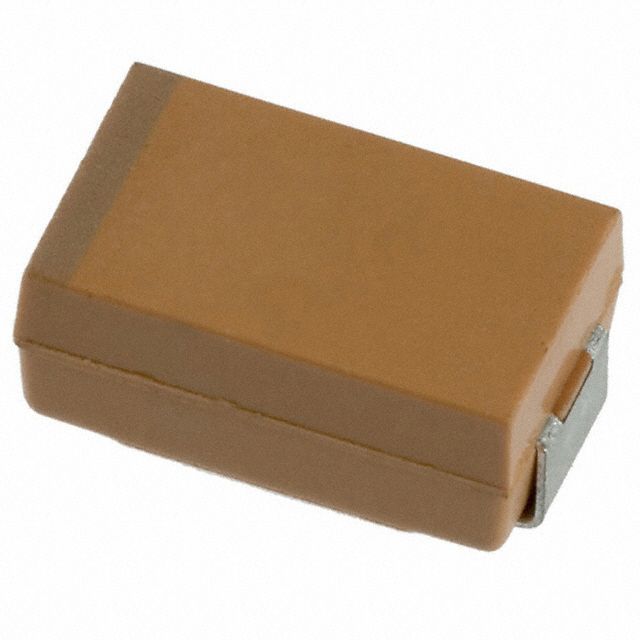

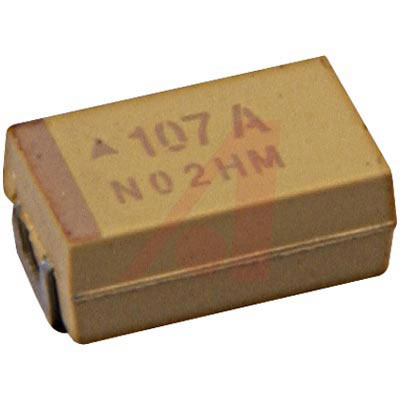

AVX  TPSD107K010R0100...  表面贴装钽电容, TPS系列, 100 µF, ± 10%, 10 V, 2917 [7343 公制], D

钽器

欧时:
TPS 系列 10 至 16V 直流AVX 的 TPS 系列低 ESR 贴片式电容器，设计主要用于电源应用。 TPS 系列电容器提供 14 种不同外壳尺寸选件。低 ESR（等效串联电阻） 高波纹电流能力 低功率和热消散尺寸 mm ---   | L | W | H | W1 | A 外壳代码 | +-0.2 | +-0.2 | +-0.2 | +-0.2 | +-0.3-0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 V | 7.3 | 6.1 | 3.45 | 3.1 | 1.4 W | 6 | 3.2 | 1.5 | 2.2 | 1.3

立创商城:
100uF ±10% 10V

艾睿:
If you need a capacitor that can be used in a variety of applications such as heavy industrial, medical, military, and aerospace then use this TPSD107K010R0100 solid tantalum capacitor from AVX. It can withstand a voltage of 10 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 10 μA. Its capacitance value is 100uF. This product is 7.3 mm long, 2.9 mm tall and 4.3 mm deep. It has a tolerance of 10%.

Allied Electronics:

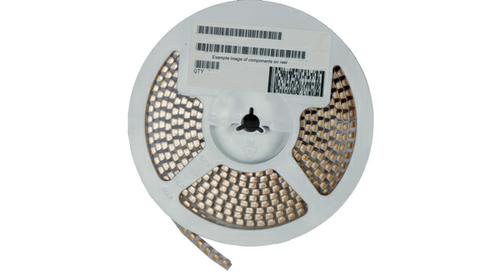

Capacitor; Tantalum; Cap 100 uF; Tol 10%; Vol-Rtg 10 VDC; SMT; 7343; Low ESR; Tape&Reel

Jameco:
Capacitor 100 uF 10 Volt 10% 7.3x4.3x2.9mm Surface Mount 7343-31 1% Tape and Reel

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.

Chip1Stop:
Cap Tant Solid 100uF 10V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.1 Ohm 125℃ T/R

TME:
Capacitor: tantalum; low ESR; 100uF; 10VDC; Case: D; 2917; ESR:100mΩ

Verical:
Cap Tant Solid 100uF 10V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.1 Ohm 125C T/R

Newark:
# AVX  TPSD107K010R0100  Surface Mount Tantalum Capacitor, 100 µF, 10 V, TPS Series, ± 10%, 2917 [7343 Metric]

儒卓力:
**TC 100uF 10V 10% Case D 100mOhm **

Win Source:
CAP TANT 100UF 10V 10% 2917
