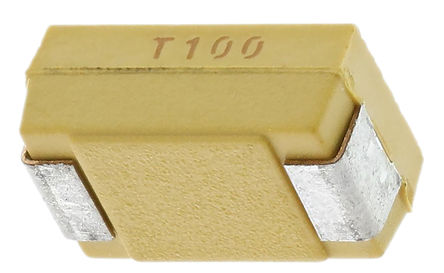

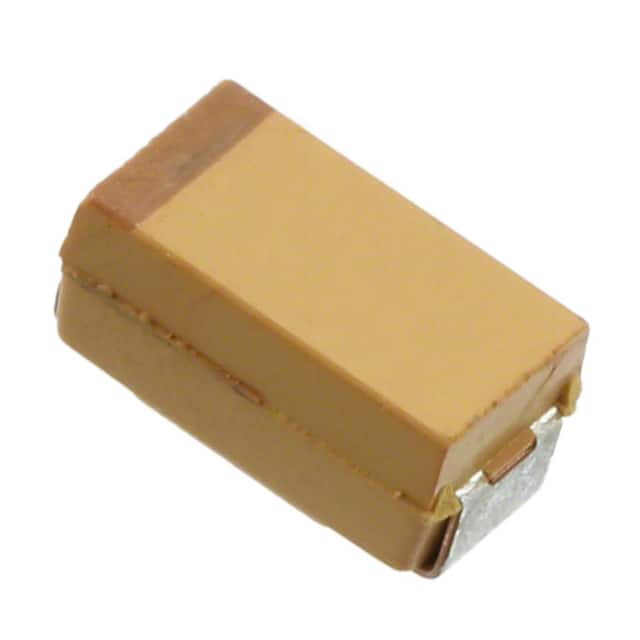

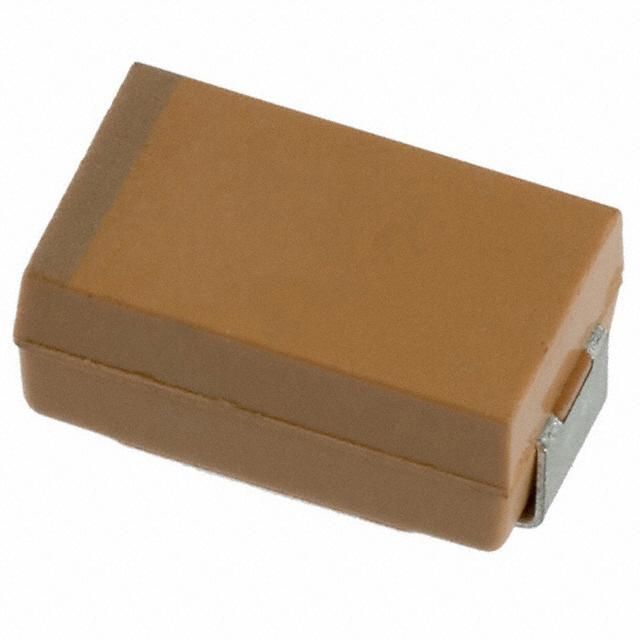

AVX TPSD227K010R0100 表面贴装钽电容, TPS系列, 220 µF, ± 10%, 10 V, 2917 [7343 公制], D
钽器
立创商城:
220uF ±10% 10V
欧时:
### TPS 系列 10 至 16V 直流AVX 的 TPS 系列低 ESR 贴片式电容器,设计主要用于电源应用。 TPS 系列电容器提供 14 种不同外壳尺寸选件。低 ESR(等效串联电阻) 高波纹电流能力 低功率和热消散 尺寸 mm --- | L | W | H | W1 | A 外壳代码 | +-0.2 | +-0.2 | +-0.2 | +-0.2 | +-0.3-0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 V | 7.3 | 6.1 | 3.45 | 3.1 | 1.4 W | 6 | 3.2 | 1.5 | 2.2 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### SMT 125°C
艾睿:
Cap Tant Solid 220uF 10V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.1 Ohm 125°C T/R
Allied Electronics:

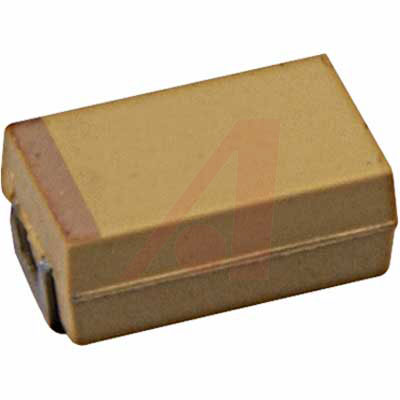

Capacitor; Tantalum; Cap 220 uF; Tol 10%; Vol-Rtg 10 VDC; SMT; 7343; ESR 100 mOhms; CT
安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.
Chip1Stop:
Cap Tant Solid 220uF 10V D CASE 10% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.1 Ohm 125A?A℃ T/R
TME:

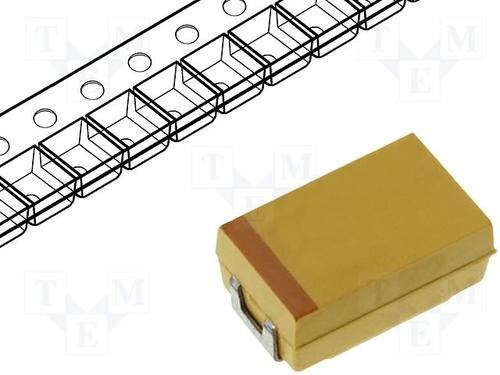

Capacitor: tantalum; low ESR; 220uF; 10VDC; Case: D; 2917; ESR:100mΩ
Verical:
Cap Tant Solid 220uF 10V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.1 Ohm 125C T/R
Newark:
# AVX TPSD227K010R0100 Surface Mount Tantalum Capacitor, 220 µF, 10 V, TPS Series, ± 10%, 2917 [7343 Metric]
儒卓力:
**TC 220uF 10V 10% Case D 100mOhm **
额定电压DC 10.0 V
工作电压 10 VDC
电容 220 µF
等效串联电阻ESR 100 mΩ
容差 ±10 %
纹波电流 0.49 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 2.9 mm
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 工业, Industrial, Portable Devices, 便携式器材, 电源管理, Power Management, 消费电子产品, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSD227K010R0100 AVX 艾维克斯 | 当前型号 | 当前型号 |
TPSY227K010R0100 艾维克斯 | 完全替代 | TPSD227K010R0100和TPSY227K010R0100的区别 |
TR3D227K010C0100 威世 | 完全替代 | TPSD227K010R0100和TR3D227K010C0100的区别 |
TPSD227K010Y0100 艾维克斯 | 完全替代 | TPSD227K010R0100和TPSD227K010Y0100的区别 |
