TPSD226K035R0400

AVX  TPSD226K035R0400  表面贴装钽电容, TPS系列, 22 µF, ± 10%, 35 V, 2917 [7343 公制], D

TPS 系列 20 至 50V 直流

的 TPS 系列低 ESR 贴片式器，设计主要用于电源应用。 TPS 系列电容器提供 14 种不同的外壳尺寸。

低 ESR（等效串联电阻）

高波纹电流能力

低功率和热消散

欧时:

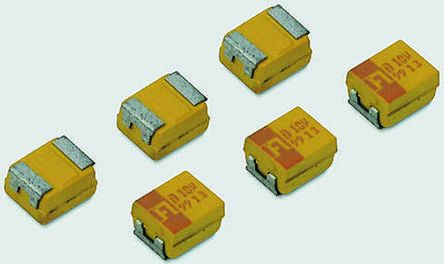

### TPS 系列 20 至 50V 直流AVX 的 TPS 系列低 ESR 贴片式电容器，设计主要用于电源应用。 TPS 系列电容器提供 14 种不同的外壳尺寸。低 ESR（等效串联电阻） 高波纹电流能力 低功率和热消散 尺寸 mm ---   | L | W | H | W1 | A 外壳代码 | +-0.2 | +-0.2 | +-0.2 | +-0.2 | +-0.3-0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 V | 7.3 | 6.1 | 3.45 | 3.1 | 1.4 W | 6 | 3.2 | 1.5 | 2.2 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### SMT 125°C

立创商城:
22uF ±10% 35V

得捷:

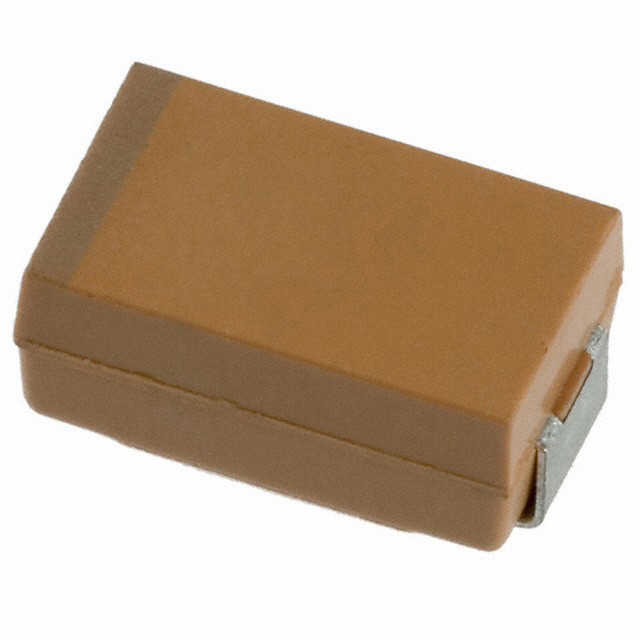

CAP TANT 22UF 10% 35V 2917

e络盟:
表面贴装钽电容, 22 µF, 35 V, 2917 [7343 公制], TPS系列, ± 10%, -55 °C

艾睿:
The higher stability of this TPSD226K035R0400 solid tantalum capacitor from AVX compared to its aluminum counterpart allows it to keep its properties through a variety of operating conditions. It can withstand a voltage of 35 VDC. Its leakage current is 7.7 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 7.3 mm long, 2.9 mm tall and 4.3 mm deep. Its capacitance value is 22uF.

Allied Electronics:
22uF SMD Solid MnO2 Tantalum Electrolytic Capacitor; 35 V dc +/-10%; TPS Series

安富利:
Cap Tant Solid 22uF 35V D CASE 10% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.4 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 22uF 35V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.4 Ohm 125C T/R

TME:

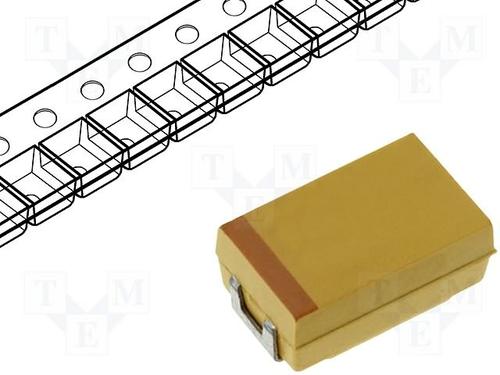

Capacitor: tantalum; low ESR; 22uF; 35VDC; Case: D; 2917; ESR:400mΩ

Verical:
Cap Tant Solid 22uF 35V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.4 Ohm 125C T/R

Newark:
# AVX  TPSD226K035R0400  Surface Mount Tantalum Capacitor, 22 µF, 35 V, TPS Series, ± 10%, 2917 [7343 Metric]

Win Source:
22μF Molded Tantalum Capacitors 35V 2917 7343 Metric 400 mOhm 0.287" L x 0.169" W 7.30mm x 4.30mm
