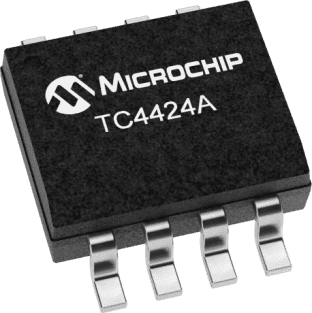

3A双高速功率MOSFET驱动器 3A Dual High-Speed Power MOSFET Drivers
Use the power driver from Technology in your design to power on and off your gates. This device has a maximum propagation delay time of 48 ns and a maximum power dissipation of 610 mW. Its maximum power dissipation is 610 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V. This gate driver has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 4.50V min
上升/下降时间 12 ns
输出接口数 2
针脚数 8
耗散功率 610 mW
下降时间Max 21 ns
上升时间Max 21 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 610 mW
电源电压 4.5V ~ 18V
电源电压Max 18 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TC4424AVOA713 Microchip 微芯 | 当前型号 | 当前型号 |
TC4424AVOA 微芯 | 类似代替 | TC4424AVOA713和TC4424AVOA的区别 |
TC4424AVMF713 微芯 | 类似代替 | TC4424AVOA713和TC4424AVMF713的区别 |
TC4424AVMF 微芯 | 类似代替 | TC4424AVOA713和TC4424AVMF的区别 |
