TPSB105K035R2000

AVX  TPSB105K035R2000  表面贴装钽电容, TPS系列, 1 µF, ± 10%, 35 V, 1210 [3225 公制], B

钽器

欧时:
### TPS 系列 20 至 50V 直流AVX 的 TPS 系列低 ESR 贴片式电容器，设计主要用于电源应用。 TPS 系列电容器提供 14 种不同的外壳尺寸。低 ESR（等效串联电阻） 高波纹电流能力 低功率和热消散 尺寸 mm ---   | L | W | H | W1 | A 外壳代码 | +-0.2 | +-0.2 | +-0.2 | +-0.2 | +-0.3-0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 V | 7.3 | 6.1 | 3.45 | 3.1 | 1.4 W | 6 | 3.2 | 1.5 | 2.2 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### SMT 125°C

e络盟:
表面贴装钽电容, 1 µF, 35 V, 1210 [3225 公制], TPS系列, ± 10%, -55 °C

艾睿:
Compared to other capacitors, this TPSB105K035R2000 tantalum solid capacitor from AVX provides a higher capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 35 VDC. Its leakage current is 0.5 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 1uF. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. It has a tolerance of 10%.

Allied Electronics:
1uF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 35 V dc +/-10%, TPS Series

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.

Chip1Stop:
Cap Tant Solid 1uF 35V B CASE 10% 3.5 X 2.8 X 1.9mm SMD 3528-21 2 Ohm 125A？A℃ T/R

TME:

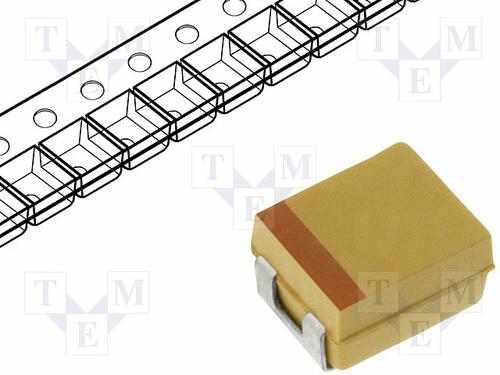

Capacitor: tantalum; low ESR; 1uF; 35VDC; Case: B; 1210; ESR:2000mΩ

Verical:
Cap Tant Solid 1uF 35V B CASE 10% 3.5 X 2.8 X 1.9mm Inward L SMD 3528-21 2 Ohm 125C T/R

Newark:
# AVX  TPSB105K035R2000  Surface Mount Tantalum Capacitor, 1 µF, 35 V, TPS Series, ± 10%, 1210 [3225 Metric]
