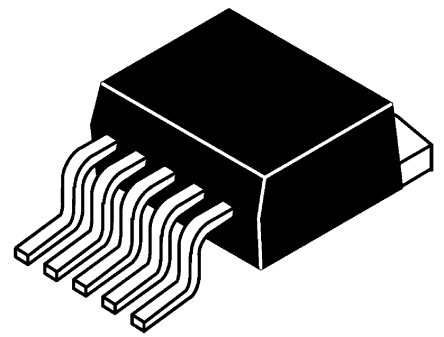

TEXAS INSTRUMENTS TPS7A4501KTTR 电压稳压器, LDO, 可调, 2.1V至20V输入, 300mV压差, 1.21V至20V/1.5A输出, TO-263-5
LDO(低压降)线性稳压器,1.5A,TPS 系列,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
立创商城:
正 Vin=20V Vout=1.21V~20V 1.5A 68dB@120Hz
得捷:
IC REG LINEAR POS ADJ 1.5A DDPAK
欧时:
### LDO(低压降)线性稳压器,1.5A,TPS 系列,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
德州仪器TI:
1.5-A, 20-V, ultra-low-dropout voltage regulator with reverse current protection & enable
e络盟:
TEXAS INSTRUMENTS TPS7A4501KTTR 电压稳压器, LDO, 可调, 2.1V至20V输入, 300mV压差, 1.21V至20V/1.5A输出, TO-263-5
艾睿:
Use the LDO TPS7A4501KTTR linear regulator from Texas Instruments to maintain a constant output voltage. Its typical dropout voltage at current is 0.02@1mA|0.085@100mA|0.17@500mA|0.3@1.5A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. This will operate at a minimum voltage of 1.9 V and a maximum voltage of 20 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.21 to 20 V, this is power management at its best. Using a load regulation of 8mV and line regulation of 3mV is needed for a programmable DC power supply. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.05@1mA|0.1@100mA|0.18@500mA|0.35@1.5A V.
安富利:
LDO Regulator Pos 1.21V to 20V 1.5A 6-Pin5+Tab TO-263 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 1.5A, Adj. 1.21V to 20V, Low Noise, Fast Transient Response LDO Regulator Pos 1.21V to 20V 1.5A 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 1.21V to 20V 1.5A 6-Pin5+Tab TO-263 T/R
Newark:
# TEXAS INSTRUMENTS TPS7A4501KTTR LDO Voltage Regulator, Adjustable, 2.1V to 20V in, 300mV drop, 1.21V to 20V/1.5A out, TO-263-5
力源芯城:
150mA,1.21V~20V可调输出,单路输出LDO
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.21 V ~ 20 V 1.5A DDPAK/TO-263-5
DeviceMart:
IC REG LDO ADJ 1.5A 5DDPAK
输出接口数 1
输出电压 1.21V ~ 20V
输出电流 1.5 A
供电电流 1.5mA ~ 90mA
针脚数 5
静态电流 1 mA
输出电容类型 Ceramic
跌落电压 300 mV
调节输出数 1
输入电压Max 20 V
输入电压Min 1.9 V
输出电压Max 20 V
输出电压Min 1.21 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.1V ~ 20V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
长度 10.16 mm
宽度 8.42 mm
高度 4.58 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 国防, 工业, 射频通信, 电机驱动与控制, 无线, 消费电子产品, 军用与航空, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS7A4501KTTR TI 德州仪器 | 当前型号 | 当前型号 |
TL1963AKTTR 德州仪器 | 类似代替 | TPS7A4501KTTR和TL1963AKTTR的区别 |
TL1963AQKTTRQ1 德州仪器 | 类似代替 | TPS7A4501KTTR和TL1963AQKTTRQ1的区别 |
LT1963AEQ#PBF 凌力尔特 | 功能相似 | TPS7A4501KTTR和LT1963AEQ#PBF的区别 |
