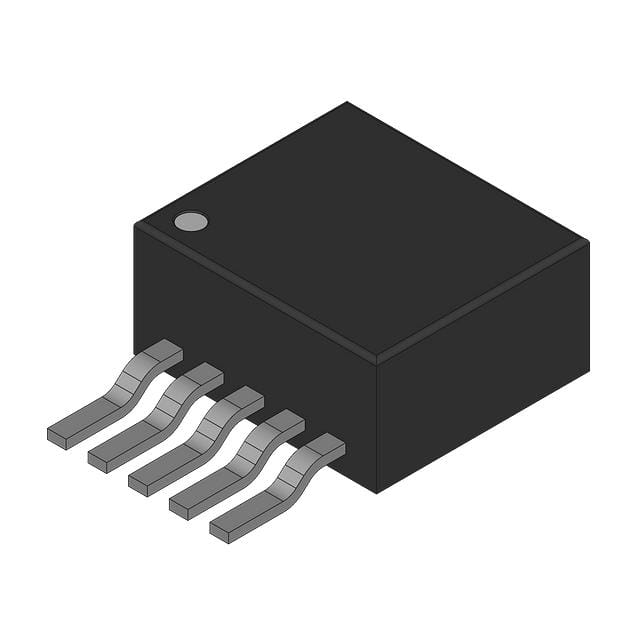

TPS7A4533KTTR

TEXAS INSTRUMENTS  TPS7A4533KTTR  固定电压稳压器, LDO, 2.1V至20V, 300mV压差, 3.3V输出, 1.5A输出, TO-263-5

LDO（低压降）线性稳压器，1.5A，TPS 系列，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

立创商城:
TPS7A4533KTTR

得捷:
IC REG LINEAR 3.3V 1.5A DDPAK

德州仪器TI:
1.5-A, 20-V, ultra-low-dropout voltage regulator with reverse current protection & enable

欧时:
LDO（低压降）线性稳压器，1.5A，TPS 系列，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

e络盟:
固定电压稳压器, LDO, 2.1V至20V, 300mV压差, 3.3V输出, 1.5A输出, TO-263-5

艾睿:
This LDO TPS7A4533KTTR linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.02@1mA|0.085@100mA|0.17@500mA|0.3@1.5A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.9 V and no higher than 20 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a load regulation of 20mV and line regulation of 10mV is needed for a programmable DC power supply. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.05@1mA|0.1@100mA|0.18@500mA|0.35@1.5A V. Its polarity is positive.

安富利:
LDO Regulator Pos 3.3V 1.5A 6-Pin5+Tab TO-263 T/R

Chip1Stop:
Single Channel LDO Low-Noise Fast-Transient-Response 1.5-A LDO Regulator LDO Regulator Pos 3.3V 1.5A 6-Pin5+Tab TO-263 T/R

Verical:
LDO Regulator Pos 3.3V 1.5A 6-Pin5+Tab TO-263 T/R

Newark:
Fixed LDO Voltage Regulator, 2.1V to 20V, 300mV Dropout, 3.3Vout, 1.5Aout, TO-263-5
