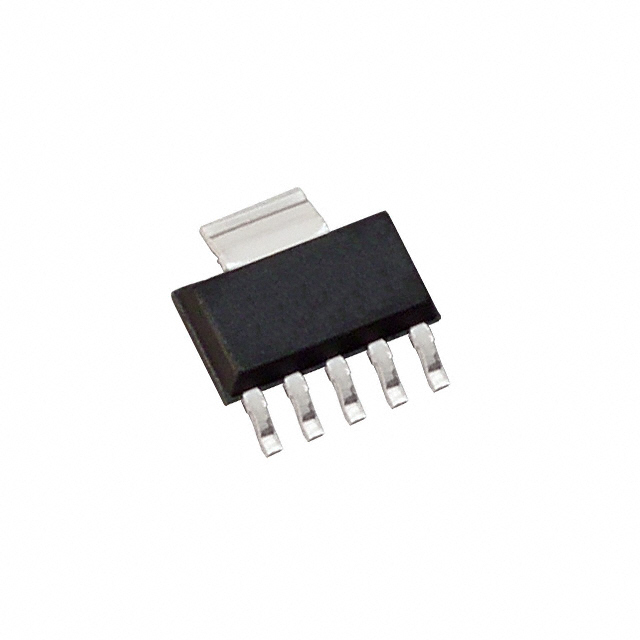

TEXAS INSTRUMENTS TPS79618DCQR 芯片, 稳压器, LDO, 1.8V, 1A, SOT-223-6
The is a 1.8V fixed output low-power low-dropout LDO Linear Regulator features high power-supply rejection ratio PSRR, ultralow-noise, fast start-up and excellent line and load transient responses. The device is stable with a small 1µF ceramic capacitor on the output. The device uses an advanced, proprietary BiCMOS fabrication process to yield extremely low-dropout LDO voltages. The device achieves fast start-up times while consuming very low quiescent current. Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1µA. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features and need fast response time.
输出接口数 1
输入电压DC 5.50V max
输出电压 1.8 V
输出电流 1 A
供电电流 385 µA
针脚数 6
静态电流 0.265 mA
输出电容类型 Ceramic
跌落电压 200 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 SOT-223-6
封装 SOT-223-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79618DCQR TI 德州仪器 | 当前型号 | 当前型号 |
TPS79618DCQ 德州仪器 | 类似代替 | TPS79618DCQR和TPS79618DCQ的区别 |
TPS79618DCQRG4 德州仪器 | 类似代替 | TPS79618DCQR和TPS79618DCQRG4的区别 |
TPS79618DCQG4 德州仪器 | 类似代替 | TPS79618DCQR和TPS79618DCQG4的区别 |
