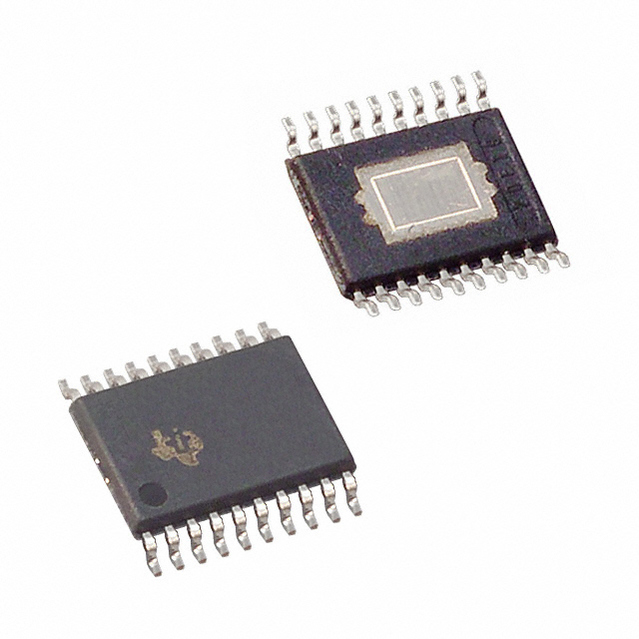

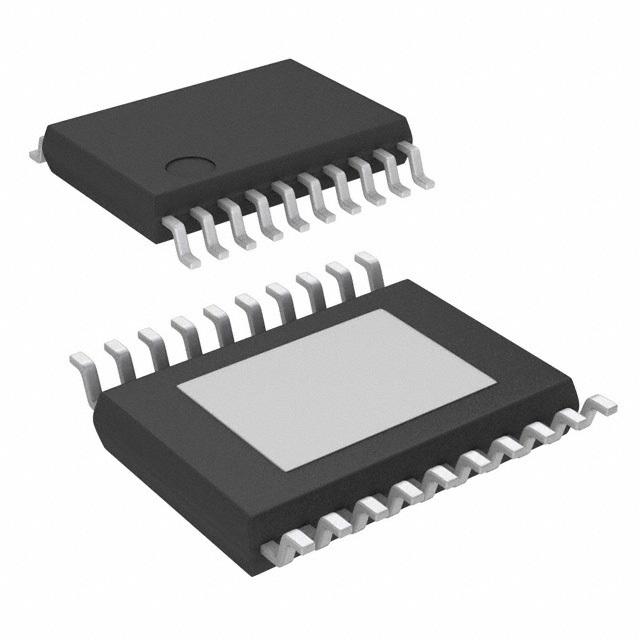

TPS76701QPWPR

TEXAS INSTRUMENTS  TPS76701QPWPR  芯片, 稳压器

PMIC - 稳压器 - 线性 正 可调式 1 输出 1A 20-HTSSOP

得捷:
IC REG LIN POS ADJ 1A 20HTSSOP

立创商城:
TPS76701QPWPR

德州仪器TI:
1-A, 10-V, low-dropout voltage regulator with enable & RESET with delay

贸泽:
低压差稳压器 Fast-Transient Response 1-A

艾睿:
Having trouble maintaining a steady voltage? This LDO TPS76701QPWPR linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.23@1A V. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 7200 mW. This voltage regulation device&s;s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 10 V. With an adjustable output that has a voltage of 1.5 to 5.5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 3mVTyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 7200 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

安富利:
LDO Regulator Pos 1.5V to 5.5V 1A 20-Pin HTSSOP EP T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 1.0A, Adj.1.5 to 5.5V, Low Quiescent Current, Fast Transient Response LDO Regulator Pos 1.5V to 5.5V 1A 20-Pin HTSSOP EP T/R

Verical:
LDO Regulator Pos 1.5V to 5.5V 1A 20-Pin HTSSOP EP T/R

Newark:
# TEXAS INSTRUMENTS  TPS76701QPWPR  LDO Voltage Regulator, Adjustable, 2.7V-10V in, 230mV drop., 1.5V-5.5V/1A out, HTSSOP-20

DeviceMart:
IC REG LDO ADJ 1A 20-HTSSOP

Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5 V ~ 5.5 V 1A 20-HTSSOP
