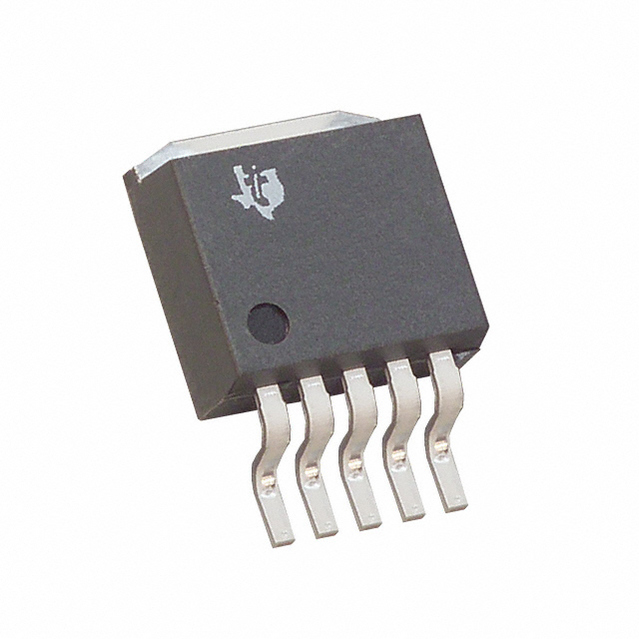

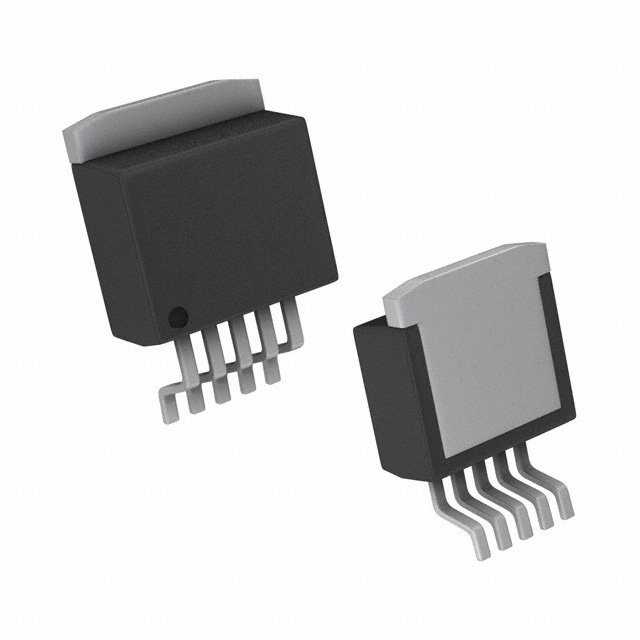

TEXAS INSTRUMENTS TPS75825KTTT 固定电压稳压器, LDO, 2.8V至5.5V, 150mV压差, 2.5V输出, 3A输出, TO-263-5
The TPS758xx family of 3A low dropout LDO regulators contains four fixed voltage option regulators and an adjustable voltage option regulator. These devices are capable of supplying 3A of output current with a dropout of 150mV TPS75833. Therefore, the device is capable of performing a 3.3V to 2.5V conversion.
Quiescent current is 125µA at full load and drops to less than 1µA when the device is disabled. The TPS758xx is designed to have fast transient response for large load current changes.
Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low typically 150mV at an output current of 3A for the TPS75833 and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading typically 125µA over the full range of output current. These two key specifications yield a significant improvement in operating life for battery-powered systems.
The device is enabled when EN enable is connected to a high voltage level > 2V. Applying a low voltage level < 0.7V to EN shuts down the regulator, reducing the quiescent current to less than 1µA at TJ = +25°C.
The TPS758xx is offered in 1.5V, 1.8V, 2.5V, and 3.3V fixed-voltage versions and in an adjustable version programmable over the range of 1.22V to 5V. Output voltage tolerance is specified as a maximum of 3% over line, load, and temperature ranges. The TPS758xx family is available in a 5-pin TO-220 KC and TO-263 KTT packages.
输出接口数 1
输入电压DC 5.50V max
输出电压 2.5 V
输出电流 3 A
供电电流 200 µA
针脚数 5
静态电流 120 µA
输出电容类型 Tantalum
跌落电压 150 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.8 V
输出电压Min 2.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 3 %
电源电压Min 2.8 V
输入电压 2.8V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
