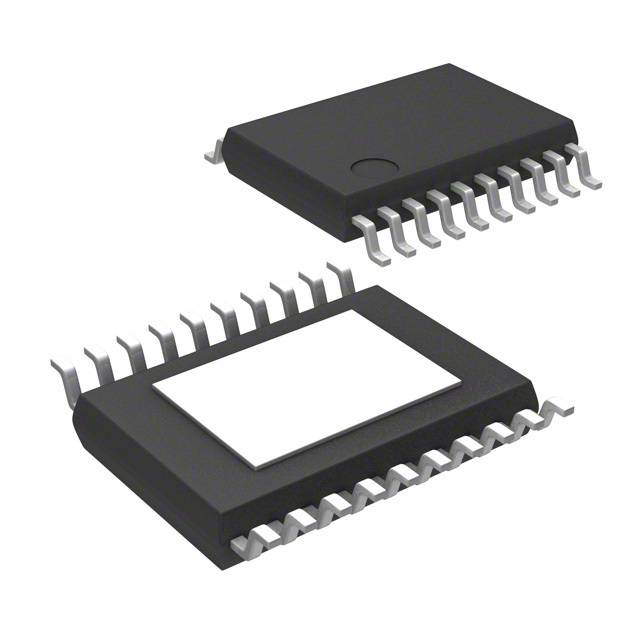

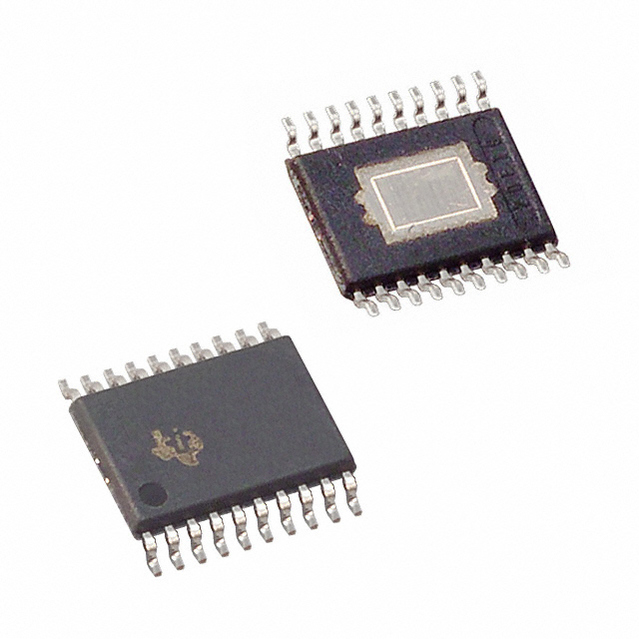

TPS76725QPWP

TEXAS INSTRUMENTS  TPS76725QPWP  固定电压稳压器, LDO, 2.7V至10V, 230mV压差, 2.5V输出, 1A输出, HTSSOP-20

PMIC - 稳压器 - 线性 正 固定 1 输出 1A 20-HTSSOP

得捷:
IC REG LINEAR 2.5V 1A 20HTSSOP

立创商城:
TPS76725QPWP

德州仪器TI:
1-A, 10-V, low-dropout voltage regulator with enable & RESET with delay

e络盟:
TEXAS INSTRUMENTS  TPS76725QPWP  固定电压稳压器, LDO, 2.7V至10V, 230mV压差, 2.5V输出, 1A输出, HTSSOP-20

艾睿:
Maintain a steady voltage level with this LDO TPS76725QPWP linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.23@1A V. This device has a maximum power dissipation of 7200 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 10 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Using a load regulation of 3mVTyp and line regulation of 0.01%/VTyp is needed for a programmable DC power supply. Its maximum power dissipation is 7200 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

安富利:
LDO Regulator Pos 2.5V 1A 20-Pin HTSSOP EP Tube

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 1A 20-HTSSOP
