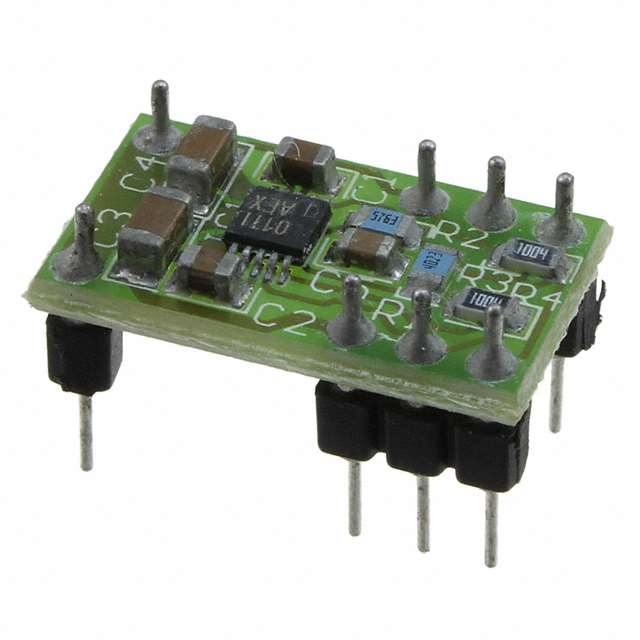

TEXAS INSTRUMENTS TPS60200EVM-145 评估模块, TPS60200稳压器, 3.3V, 100MA, EVM
The is an evaluation tool for the 100mA low ripple charge pump TPS60200. With 1.6V to 3.6V input, it delivers a regulated low-ripple output voltage of 3.3V with up to 100mA.
The development tool includes a tested evaluation module, a Design Guide SLVU027 that contains the schematic, the bill of material, the component placement, the layout and the setup of the EVM. A datasheet of the TPS60200, TPS60201, TPS60202, TPS60203 SLVS274 is also included, but please make sure that you download the latest version.
LBI/LBO indicator is set to 2 V. Below an input voltage of 2 V LBO goes active.
**Additional Requirements** The only necessity to use the EVM is a power source, either a DC source or a battery pack with two NiCd, NiMH or alcaline battery cells.
