备用电池监事RAM保持 BACKUP-BATTERY SUPERVISORS FOR RAM RETENTION
The TPS3619 and TPS3620 families of supervisory circuits monitor and control processor activity by providing backup-battery switchover for data retention of CMOS RAM.
During power on, RESET is asserted when the supply voltage VDD or VBAT becomes higher than 1.1 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET output active as long as VDD remains below the threshold voltage VIT. An internal timer delays the return of the output to the inactive state high to ensure proper system reset. The delay time starts after VDD has risen above VIT. When the supply voltage drops below VIT, the output becomes active low again.
The product spectrum is designed for supply voltages of 3.3 V and 5 V. The TPS3619 and TPS3620 are available in an 8-pin MSOP package and are characterized for operation over a temperature range of 40°C to +85°C.
电源电压DC 1.65V min
供电电流 0.04 mA
耗散功率 470 mW
静态电流 15.0 µA
阈值电压 2.93 V
复位电压Min 2.88 V
复位电压Max 3 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 470 mW
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8

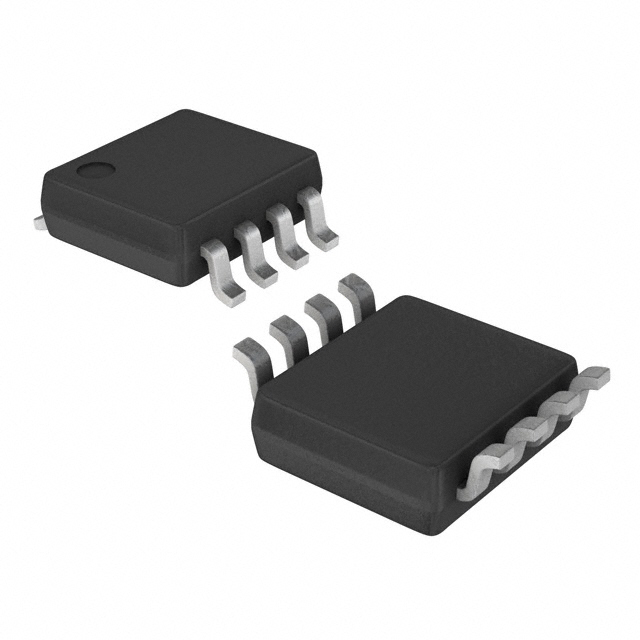

封装 VSSOP-8
长度 3 mm
宽度 3 mm
高度 0.97 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS3620-33DGKR TI 德州仪器 | 当前型号 | 当前型号 |
TPS3620-33DGKT 德州仪器 | 完全替代 | TPS3620-33DGKR和TPS3620-33DGKT的区别 |
TPS3619-33DGK 德州仪器 | 类似代替 | TPS3620-33DGKR和TPS3619-33DGK的区别 |
TPS3619-33DGKR 德州仪器 | 类似代替 | TPS3620-33DGKR和TPS3619-33DGKR的区别 |
