TEXAS INSTRUMENTS TPS22922BEVM 评估模块, TPS22922BEVM

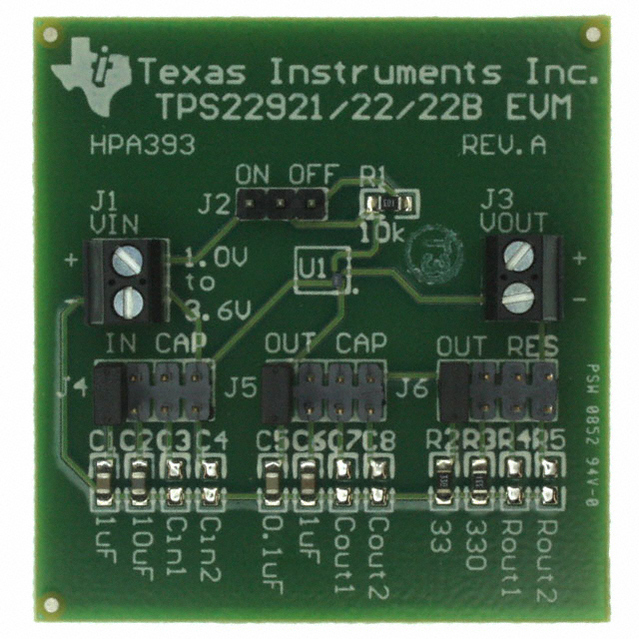

The is an evaluation module for TPS22922B/21/22 low input voltage, ultra low rON load switches. This evaluation module operates over a 0.9V to 3.6V range and provides a continuous output current of up to 110mA. Additional open resistor and capacitor footprints allow for the use of customer selected input and output load values. The TPS22922BEVM accepts a YFP-6 packaged load switch for any of three possible devices TPS22921, TPS22922, or TPS22922B. These switches have a low threshold enable input, internally controlled slew rate, and ultra low quiescent/shutdown current. The TPS22922 and TPS22922B also incorporate a 120R quick output discharge resistor internally.
- .
- 2A maximum continuous switch current
- .
- Ultra low quiescent current 78nA at 1.8V
- .
- Controlled slew rate to avoid inrush currents
- .
- Ultra low shutdown current 35nA at 1.8V
- .
- ESD performance tested per JESD 22
- .
- Six terminal Wafer Chip Scale Package
This EVM should be operated within the input voltage range of 1V to 3.6V and the output voltage range of 1V to 3.6V. Exceeding the specified input voltage range may cause damage to the EVM.
