TPL0102EVM概述

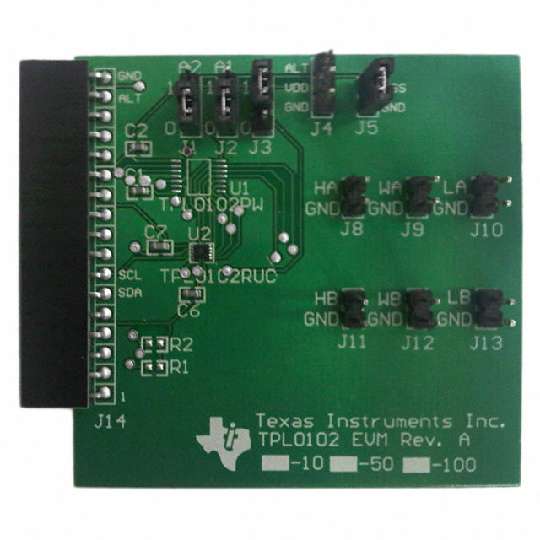

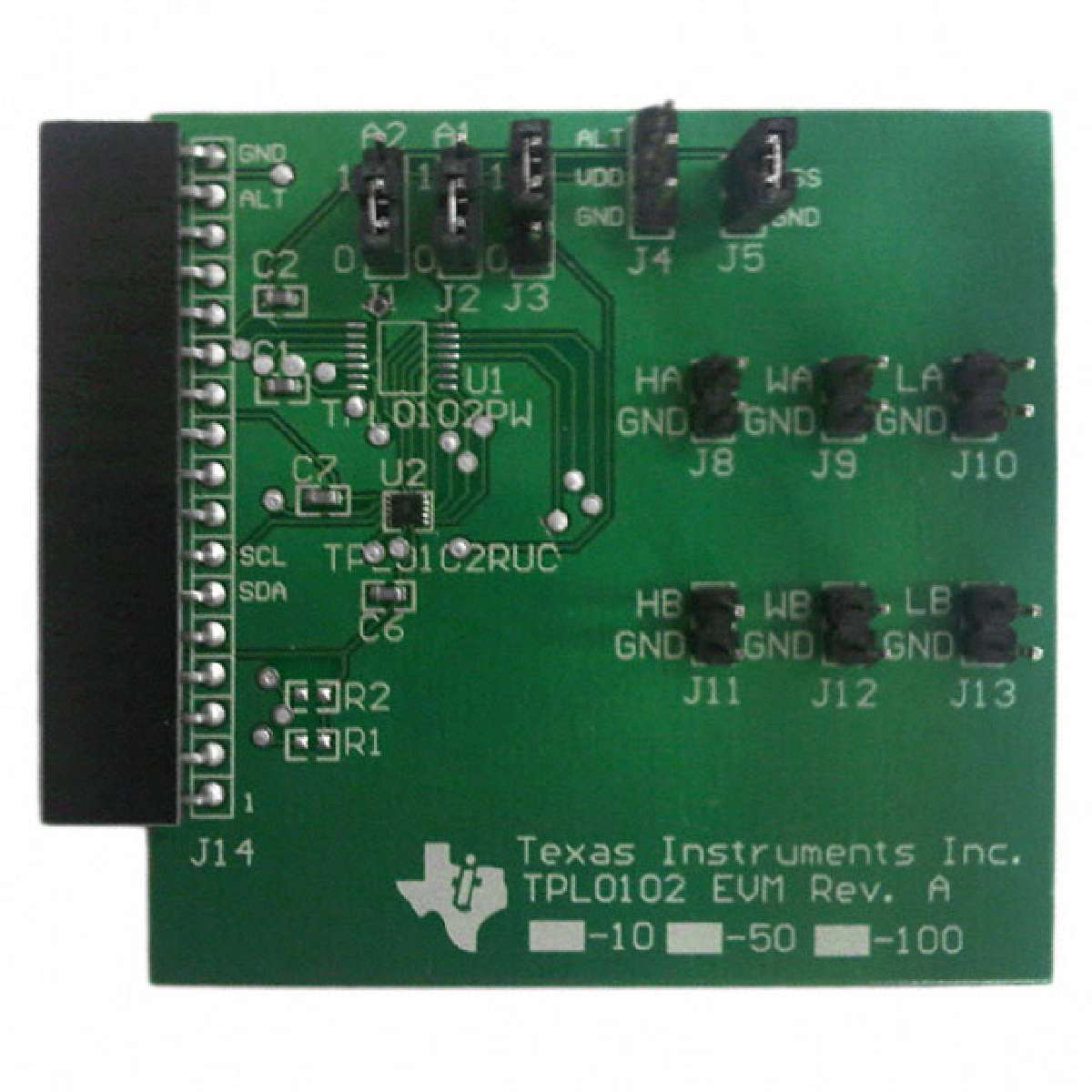

TEXAS INSTRUMENTS TPL0102EVM Evaluation Module for TPL0102 Digital Potentiometer with I2C Interface and Non Volatile Memory

The is an evaluation module designed to evaluate the operation and performance of TPL0102, which is a two channel, linear taper digital potentiometer with 256 wiper positions. Each potentiometer can be used as a three terminal potentiometer or as a two terminal rheostat. The TPL0102-100 has an end to end resistance of 100kR. The TPL0102 has Non-volatile memory EEPROM which can be used to store the wiper position. The internal registers of the TPL0102 can be accessed using the I2C interface. The TPL0102 is available in a 14 pin MicroQFN and 14 pin TSSOP package.

.
TPL0102 is a two channel, 256-tap, linear taper DPOT with Non-volatile memory and I2C interface
.
Simple evaluation module EVM for user configuration and evaluation
.
Dual footprint option board pre populated with MicroQFN package
.
Interface to host via connector J14
.
Each potentiometer can be used as a three terminal potentiometer or as a two terminal rheostat
TPL0102EVM中文资料参数规格
其他

产品生命周期 Unknown

包装方式 Bulk

制造应用 测试与测量, 电源管理

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买TPL0102EVM
型号: TPL0102EVM
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS TPL0102EVM Evaluation Module for TPL0102 Digital Potentiometer with I2C Interface and Non Volatile Memory
