300毫安,低IQ ,低压降稳压器 300-mA, Low-IQ, Low-Dropout Regulator
PMIC - 稳压器 - 线性 正 固定 输出 300mA 6-WSON(1.5x1.5)
得捷:
IC REG LINEAR 2.8V 300MA 6WSON
立创商城:
TLV70228DSER
德州仪器TI:
300-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
贸泽:
低压差稳压器 300mA,Low IQ,LDO Reg
艾睿:
This LDO TLV70228DSER linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.037@50mA|0.075@100mA|0.22@300mA V. This device has a maximum power dissipation of 555 mW. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. With a small input voltage of 2 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 2.8 V, this is power management at its best. At a load regulation of 1mVTyp and line regulation of 1mVTyp your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 555 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 2.8V 0.3A 6-Pin WSON T/R
Chip1Stop:
LDO Regulator Pos 2.8V 0.3A 6-Pin WSON T/R
Verical:
LDO Regulator Pos 2.8V 0.3A 6-Pin WSON T/R
DeviceMart:
IC REG LDO 2.8V .3A 6WSON
输出接口数 1
输出电压 2.8 V
输出电流 300 mA
供电电流 55µA ~ 370µA
耗散功率 555 W
静态电流 0.03 mA
输出电容类型 Ceramic
跌落电压 220 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 2.8 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 555 mW
精度 ±0.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6

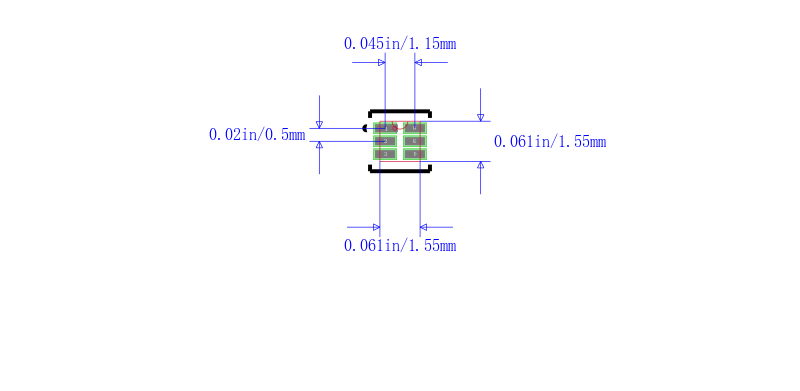

封装 WFDFN-6
封装 WFDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70228DSER TI 德州仪器 | 当前型号 | 当前型号 |
TLV70228DSET 德州仪器 | 类似代替 | TLV70228DSER和TLV70228DSET的区别 |
