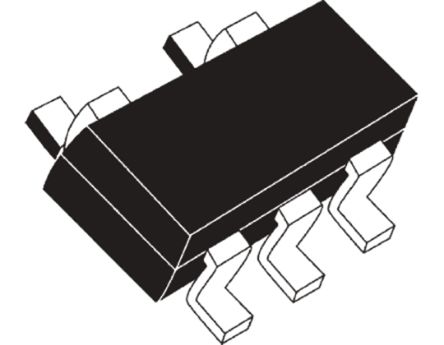

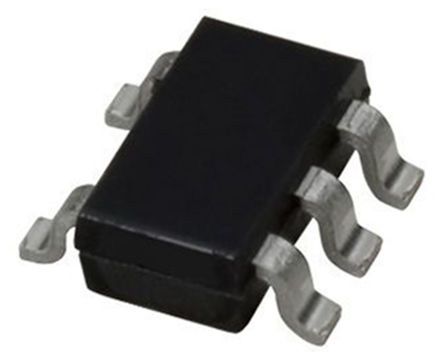

TLV70028DCKT

TEXAS INSTRUMENTS  TLV70028DCKT  固定电压稳压器, LDO, 2V至5.5V, 175mV压差, 2.8V输出, 200mA输出, SC-70-5

LDO（低压降）线性稳压器，200mA，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 2.8V 200MA SC70-5

立创商城:
TLV70028DCKT

德州仪器TI:
200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable

欧时:
Texas Instruments TLV70028DCKT 低噪声低压降稳压器, 2.8 V输出, 200mA最大输出, 2%精确度

贸泽:
低压差稳压器 200mA Low IQ LDO Reg for Portables

艾睿:
Use the LDO TLV70028DCKT linear regulator from Texas Instruments to maintain a constant output voltage. Its typical dropout voltage at current is 0.043@50mA|0.085@100mA V. This device has a maximum power dissipation of 320 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2 V and no higher than 5.5 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. A load regulation of 1mVTyp and line regulation of 1mVTyp is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 320 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

安富利:
LDO Regulator Pos 2.8V 0.2A 5-Pin SC-70 T/R

Chip1Stop:
Single Channel LDO 200mA, Low IQ, Low Dropout Regulator for Portables LDO Regulator Pos 2.8V 0.2A 5-Pin SC-70 T/R

Verical:
LDO Regulator Pos 2.8V 0.2A 5-Pin SC-70 T/R

Newark:
# TEXAS INSTRUMENTS  TLV70028DCKT  Fixed LDO Voltage Regulator, 2V to 5.5V, 175mV Dropout, 2.8Vout, 200mAout, SC-70-5
