TOSHIBA TLP2531 光电耦合器, 晶体管输出, 2通道, DIP, 8 引脚, 25 mA, 2.5 kV, 19 %
The is a 2-channel 8-pin Photocoupler consists of a pair of GaAIAs light emitting diode and integrated photodetector. Separate connection for the photodiode bias and output transistor collectors improve the speed up to a hundred times that of a conventional phototransistor coupler by reducing the base-collector capacitance. It is suitable for digital logic isolation, line receiver and transistor inverter.
- .
- 25mA LED forward current
- .
- 5V LED reverse voltage
- .
- 0 to 70°C Guaranteed performance over temperature range
输出电压 15.0 V
输出电流 8 mA
通道数 2
针脚数 8
正向电压 1.65 V
输入电流 16.0 mA
耗散功率 45 mW
隔离电压 2.5 kV
输出电压Max 15 V
正向电压Max 1.7 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 45 mW
安装方式 Through Hole
引脚数 8

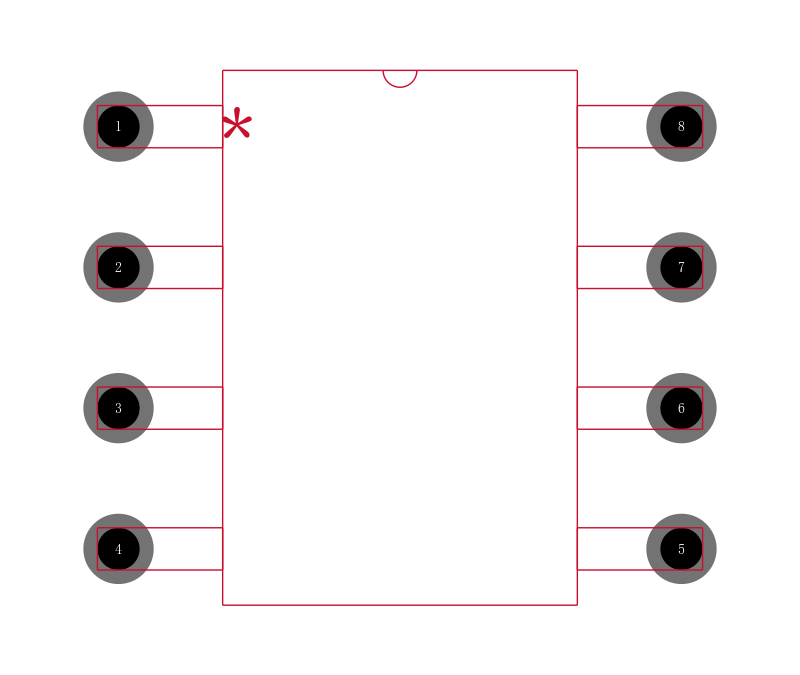

封装 DIP-8
长度 9.66 mm
宽度 6.4 mm
高度 3.65 mm
封装 DIP-8
产品生命周期 Obsolete
包装方式 Each
制造应用 Power Management, Measurement instrumentation, Signal Processing, 电源管理, PLC, 信号处理, Communication interface
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TLP2531 Toshiba 东芝 | 当前型号 | 当前型号 |
HCPL2531 飞兆/仙童 | 功能相似 | TLP2531和HCPL2531的区别 |
HCPL-2531 飞兆/仙童 | 功能相似 | TLP2531和HCPL-2531的区别 |
