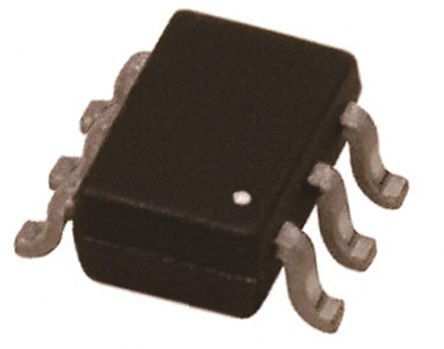

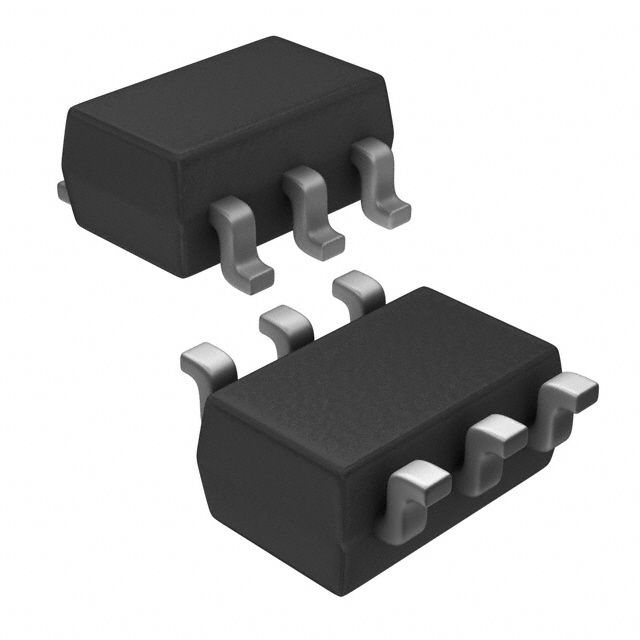

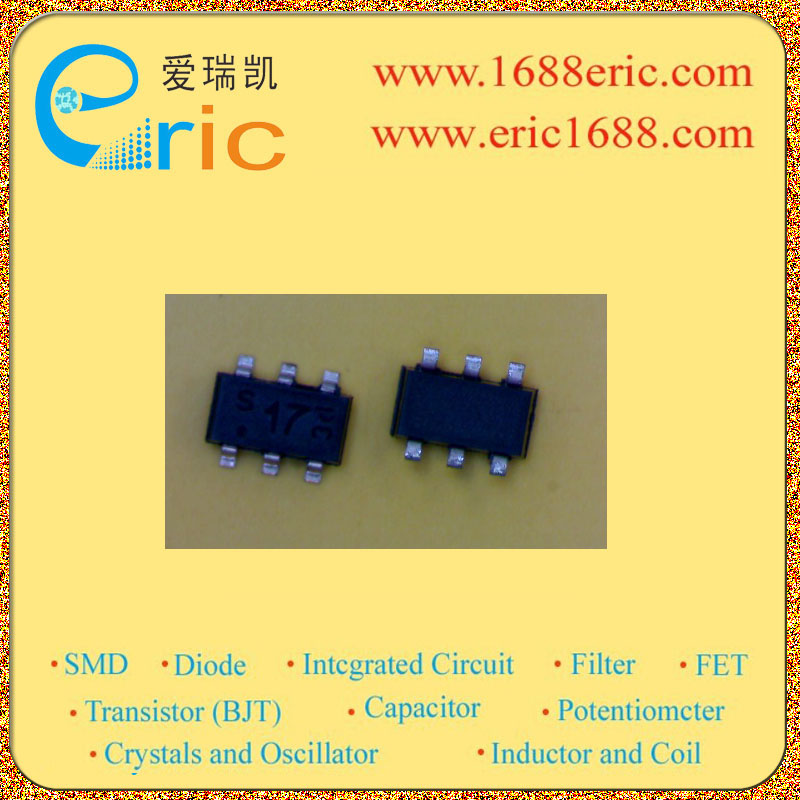

INFINEON TLE4917 霍尔效应传感器, Omnipolar Switch, 2 mA, TSOP, 6 引脚, 2.4 V, 5.5 V
感应范围Sensing Range| 5/-5mT跳闸,4/-4mT释放 5/-5mT Trip,4/-4mT Release \---|--- 类型Type| 霍尔效应开关 Hall Effect Switch 电源电压Voltage - Supply| 负0.3-5.5V 电源电流Current - Supply| 负1-2.5mA 输出电流Current - Output Max| 负1-2mA Description & Applications| Low Power Hall Switch Features • Micro power design • 2.4 V to 5.5 V battery operation • High sensitivity and high stability of the magnetic switching points • High resistance to mechanical stress • Digital output signal • Switching for both poles of a magnet omnipolar • Programming pin for the switching direction of the output • Not suitable for automotive application 描述与应用| 低功率霍尔开关 •微功耗设计 •2.4 V至5.5 V的电池操作 •高灵敏度,高稳定性的 磁开关点 •高的抗机械应力 •数字输出信号 •开关为磁铁的两极(全极) •编程引脚开关 的输出方向 •不适用于汽车中的应用
电源电压DC 2.40V min
输出电流 2 mA
供电电流 1.1 mA
针脚数 6
输出电流Max 2 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.4V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.4 V
安装方式 Surface Mount
引脚数 6
封装 TSOP-6-6
长度 2.9 mm
宽度 1.6 mm
高度 1 mm
封装 TSOP-6-6
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
