TLE6240GP

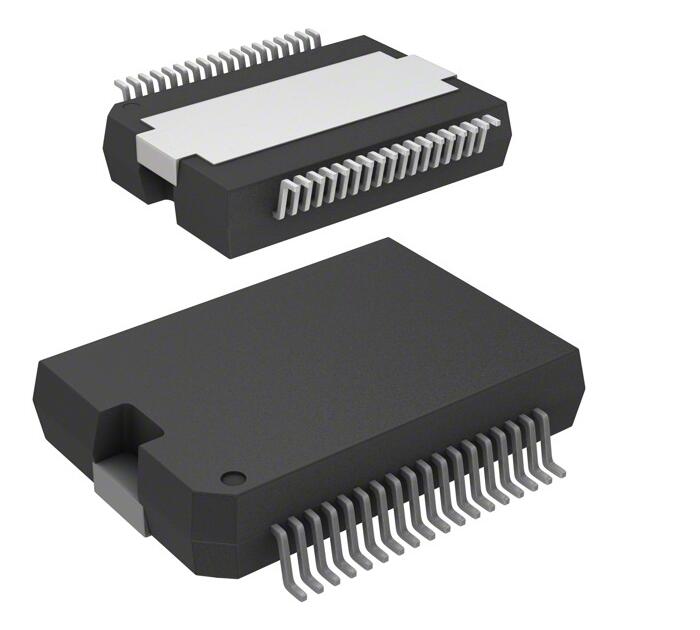

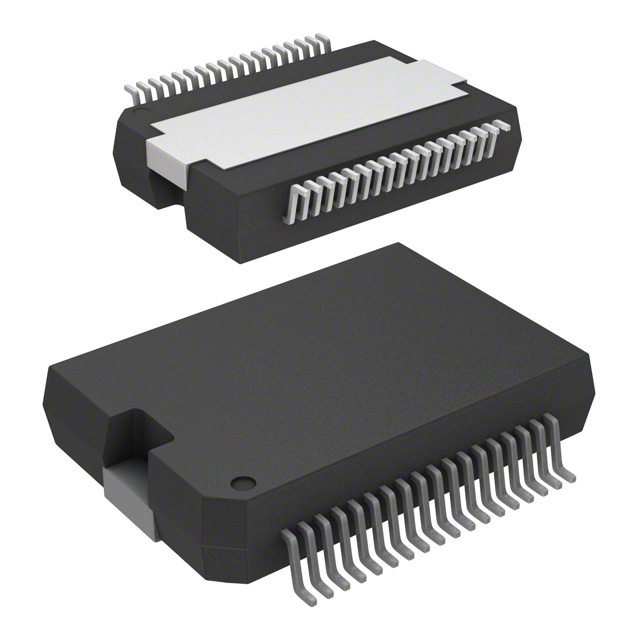

INFINEON  TLE6240GP  电源负载开关, 低压侧, 高电平有效, 低电平有效, 16路输出, 5.5V, 4.5A, SOIC-36

The is a 16-fold low-side Switch in Smart Power Technology SPT with a Serial Peripheral Interface SPI and 16 open drain DMOS output stages. The TLE6240GP is protected by embedded protection functions. The output stages are controlled via SPI Interface. Additionally 8 channels can be controlled direct in parallel for PWM applications. Therefore the TLE6240GP is particularly suitable for engine management and powertrain systems, safety and body applications.

.

Short-circuit protection

.

Overtemperature protection

.

Overvoltage protection

.

16-bit serial data input and diagnostic output

.

Direct parallel control of eight channels for PWM applications

.

Parallel inputs high or low active programmable

.

General fault flag

.

Low quiescent current

.

Compatible with 3V microcontrollers

.

Green product

.

AEC qualified
