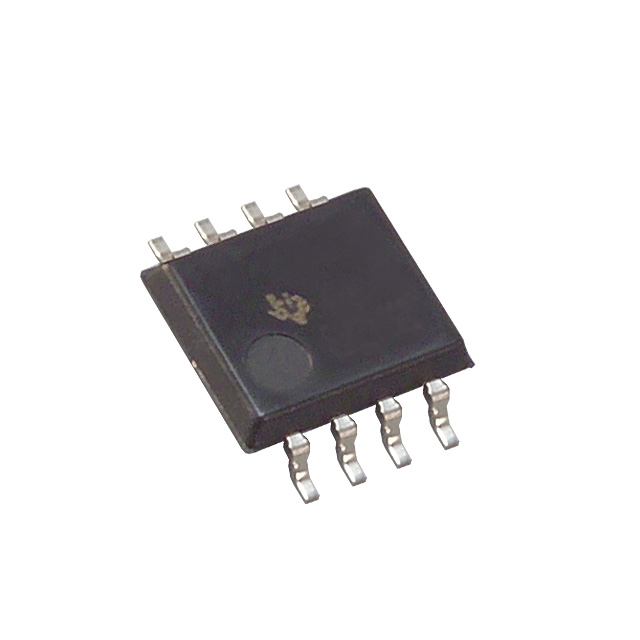

TEXAS INSTRUMENTS TL7700CPSR 电压监控器, 低电平有效复位, 1.8V-40V输入, SOP-8
监控器 开路漏极或开路集电极 通道 8-SO
得捷:
IC SUPERVISOR 1 CHANNEL 8SO
立创商城:
TL7700CPSR
德州仪器TI:
Voltage supervisor
e络盟:
电压监控器, 低电平有效复位, 1.8V-40V输入, SOP-8
艾睿:
Protect your sensitive components from overvoltages or undervoltage situations with this supply voltage supervisory TL7700CPSR voltage monitor IC from Texas Instruments. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1.8 V and a maximum of 40 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
Volt Supervisor Supply 0.49V to 0.51V 8-Pin SOP T/R
Chip1Stop:
Supervisory Circuits Voltage Supervisors Voltage Supervisor Processor Supervisor 1 Active Low 8-Pin SOP T/R
Verical:
Processor Supervisor 1 Active Low Automotive 8-Pin SOP T/R
Newark:
Voltage Supervisor, 1.8V-40V supply, 2.5V Threshold, 10 µs Delay, Active-Low Reset, SOP-8
Win Source:
IC SUPPLY-VOLT SUPERVISOR 8SO
DeviceMart:
IC SUPPLY-VOLT SUPERVISOR 8-SOP
电源电压DC 1.80V min
供电电流 1 mA
针脚数 8
静态电流 600 µA
阈值电压 2.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 40 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 8
封装 SOP-8
封装 SOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL7700CPSR TI 德州仪器 | 当前型号 | 当前型号 |
TL7700CPS 德州仪器 | 完全替代 | TL7700CPSR和TL7700CPS的区别 |
TL7700CPW 德州仪器 | 类似代替 | TL7700CPSR和TL7700CPW的区别 |
TL7700CDGKT 德州仪器 | 类似代替 | TL7700CPSR和TL7700CDGKT的区别 |
