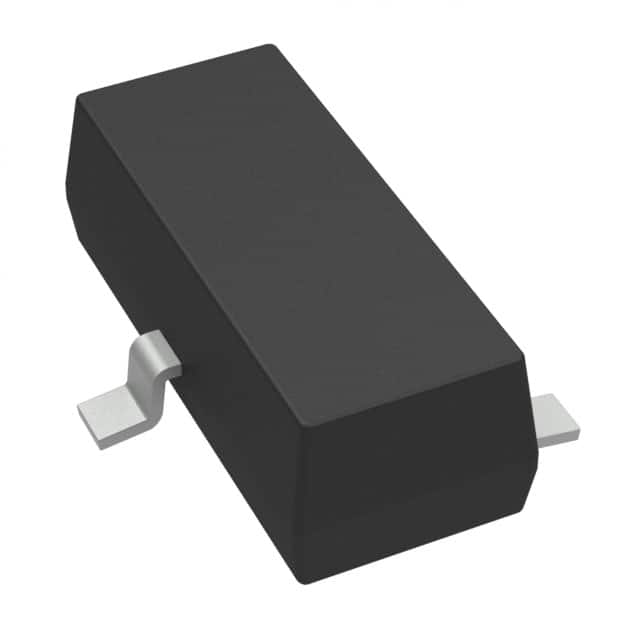

TEXAS INSTRUMENTS TL431AIDBZTG4 电压基准, 精密, 分流 - 可调, TL431系列, 2.495V至36V, SOT-23-3
The is an adjustable precision Shunt Regulator with three-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive, commercial and military temperature ranges. The output voltage can be set to any value between Vref approximately 2.5 V and 36 V with two external resistors. This device has a typical output impedance of 0.2R. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies and switching power supplies.
- .
- Typical temperature drift
- .
- Low output noise
- .
- 1 to 100mA Sink-current capability
- .
- Green product and no Sb/Br
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
容差 ±1 %
输入电压DC 2.50V ~ 36.0V
输出电压 2.495V ~ 36V
输出电流 100 mA
通道数 1
针脚数 3
输入电压Max 36 V
输入电压Min 2.495 V
输出电压Max 36 V
输出电压Min 2.495 V
输出电流Max 100 A
正向电压Max 14 V
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.495V ~ 36V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
温度系数 ±92 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 军用与航空, 车用, 国防, 商业, 自动化与过程控制, 系统监控
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TL431AIDBZTG4 TI 德州仪器 | 当前型号 | 当前型号 |
TL431ACDBZR 德州仪器 | 完全替代 | TL431AIDBZTG4和TL431ACDBZR的区别 |
TL431AQDBZR 德州仪器 | 完全替代 | TL431AIDBZTG4和TL431AQDBZR的区别 |
TL431AQDBZT 德州仪器 | 完全替代 | TL431AIDBZTG4和TL431AQDBZT的区别 |
