TEXAS INSTRUMENTS THS4531ADGKEVM. 评估模块, THS4531完全差分放大器

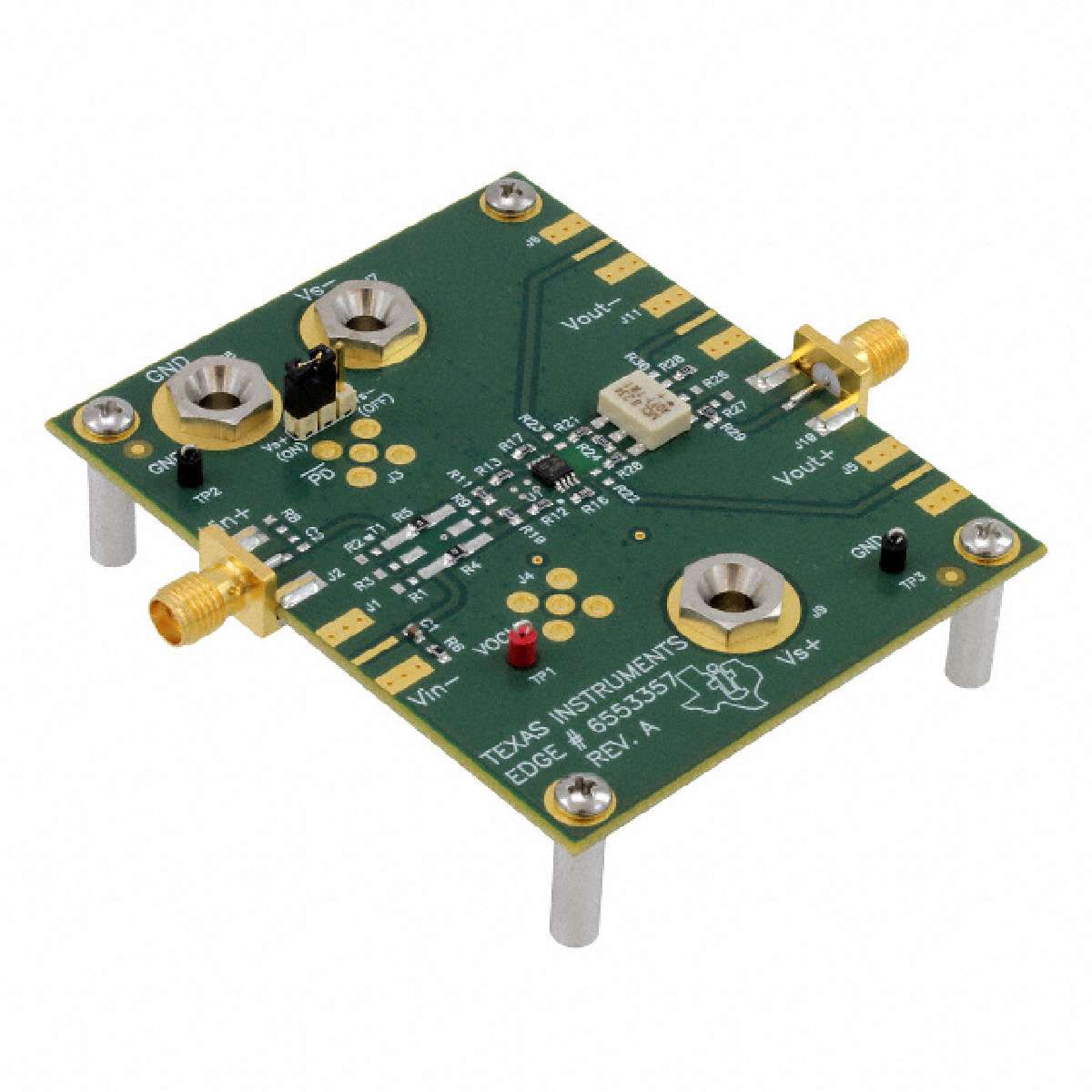

The is an evaluation module for single THS4531 amplifier. The THS4531A is a low power, fully differential opamp with input common mode range below the negative rail and rail to rail output. The device is designed for low power data acquisition systems and high density applications where power consumption and dissipation is critical. This evaluation module is designed to quickly and easily demonstrate the functionality and versatility of the amplifier. The EVM is ready to connect to power, signal source and test instruments through the use of onboard connectors. The EVM comes configured for easy connection with common 50ohm laboratory equipment on its inputs and outputs. The amplifier is configured for single ended input with gain of 1V/V to differential output at the device pins, which is converted to single ended via a transformer to the output. It can be easily configured for other functions, gains and single or split supply operation.
- .
- Configured for split supply operation and easily modified for single supply
- .
- Default gain of 1 configuration can easily be reconfigured for other gains
- .
- Designed for easy connection to standard 50ohm input/output impedance test equipment
- .
- Inputs and outputs include SMA connectors
- .
- Bandwidth of 36MHz
- .
- Slew rate of 200V/µs
- .
- Rail to rail output RRO
- .
- Negative rail input NRI
- .
- Output common mode control
- .
- High DC accuracy
ESD sensitive device, take proper precaution while handling the device.
It is important to operate this EVM within the input voltage range of 2.5V to 5.5V and the output voltage range of 2.5V to 5.5V. Exceeding the specified input range may cause damage to the EVM.
