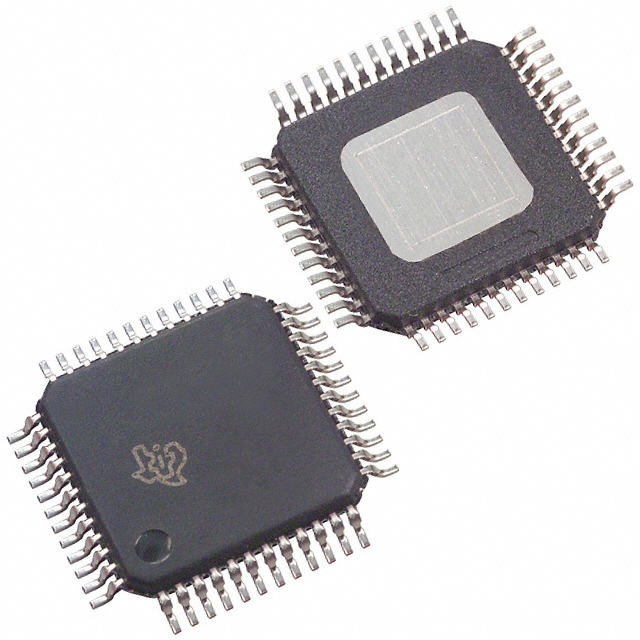

TEXAS INSTRUMENTS THS7327PHP 芯片, 视频放大器缓冲器
Fabricated using the new complementary silicon-germanium SiGe BiCom-III process, the THS7327 is a low-power, single-supply 2.7-V to 5-V, 3-channel integrated video buffer with H and V Sync signal paths. It incorporates a selectable 5th order Butterworth anti-aliasing filter on each channel. The 9-MHz is a perfect choice for SDTV video including composite, S-Video™, and 480i/576i. The 16-MHz filter is ideal for EDTV 480p/576p and VGA signals. The 35-MHz filter is useful for HDTV 720p/1080i and SVGA signals. The 75-MHz filter is ideal for HDTV 1080p and XGA/SXGA signals. For UXGA/QXGA R’G’B’ signals, the filter can be bypassed allowing a 500-MHz bandwidth, 1150-V/µs amplifier to buffer the signal.
输出电流 115 mA
供电电流 118 mA
电路数 3
通道数 3
耗散功率 2850 mW
转换速率 1.30 mV/μs
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 500 MHz
耗散功率Max 2850 mW
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount

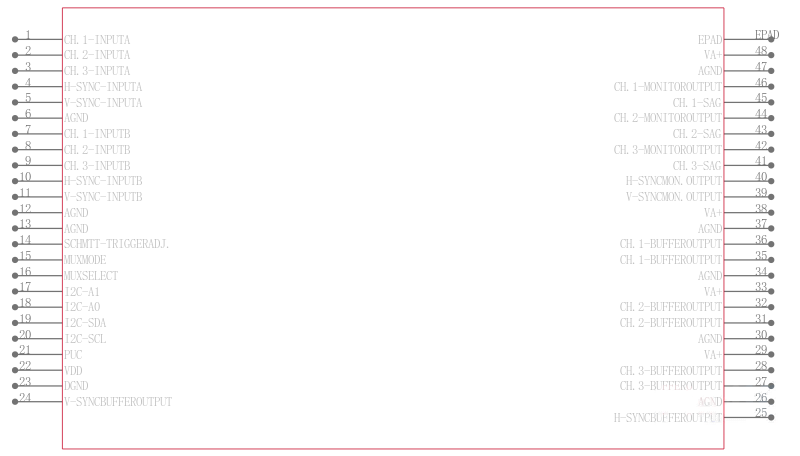

引脚数 48

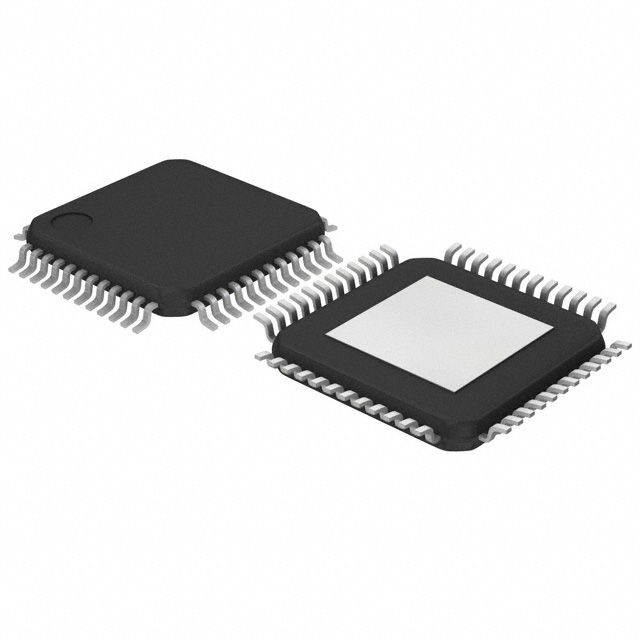

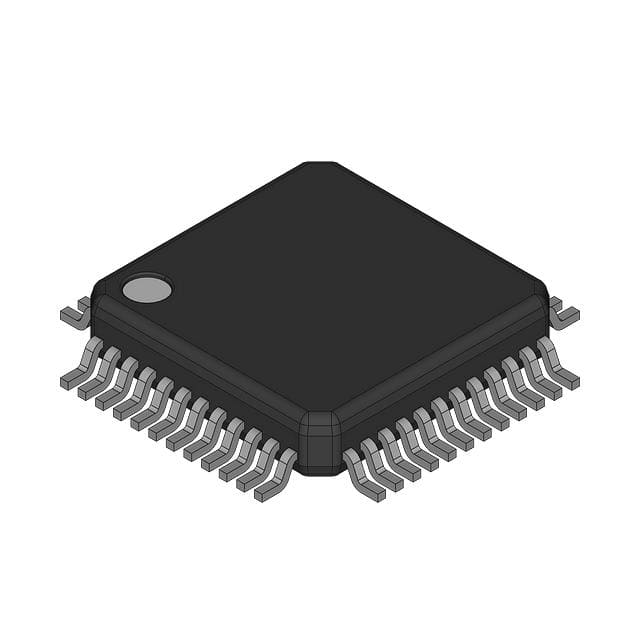

封装 HTQFP-48
长度 7 mm
宽度 7 mm
高度 1 mm
封装 HTQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
THS7327PHP TI 德州仪器 | 当前型号 | 当前型号 |
THS7327PHPR 德州仪器 | 完全替代 | THS7327PHP和THS7327PHPR的区别 |
THS7327PHPRG4 德州仪器 | 完全替代 | THS7327PHP和THS7327PHPRG4的区别 |
THS7347IPHP 德州仪器 | 类似代替 | THS7327PHP和THS7347IPHP的区别 |
