TGHHV5R00JE

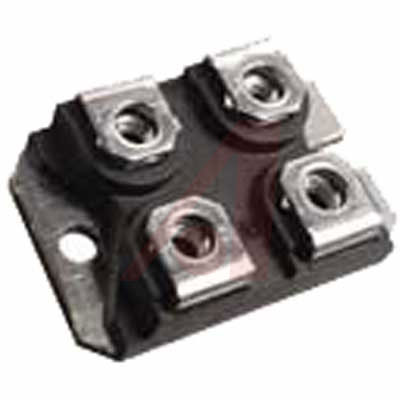

Resistor; Thick Film; Res 5Ω; Pwr-Rtg 120W; Tol 5%; SMT; Sot-227; Heat Sink

Due to the non inductive design these resistors are ideally suited for high frequency and pulse load applications. By direct mounting on a heatsink significant cost advantages can be realized. The TGH can be supplied in a 2-terminal or 4-terminal version. Popular applications are: variable speed drives, power supplies, control devices, telecom robotics, motor controls and other switching designs. Specials and custom designed components on request.

欧时:
Resistor Thick Film 5R 120W 5% Sot227

艾睿:
Res Thick Film 5 Ohm 5% 120W ±250ppm/C Epoxy SOT-227 Screw Terminal Bolt-On

Allied Electronics:
Resistor; Thick Film; Res 5 Ohms; Pwr-Rtg 120 W; Tol 5%; SMT; Sot-227; Heat Sink

Verical:
Res Thick Film 5 Ohm 5% 120W ±250ppm/C Epoxy SOT-227 Screw Terminal Bolt-On

Newark:
# OHMITE  TGHHV5R00JE  Resistor, Screw, 5 ohm, 120 W, 500 V, ± 5%, TGH Series, Thick Film

MASTER:
Res Thick Film 5 Ohm 5% 120W ±250ppm/°C Epoxy SOT-227 Screw Terminal Bolt-On

Online Components:
Res Thick Film 5 Ohm 5% 120W ±250ppm/°C Epoxy SOT-227 Screw Terminal Bolt-On

Electro Sonic:
Res Thick Film 5 Ohm 5% 120W ±250ppm/°C Epoxy SOT-227 Screw Terminal Bolt-On
