TEN 30-2410WIN

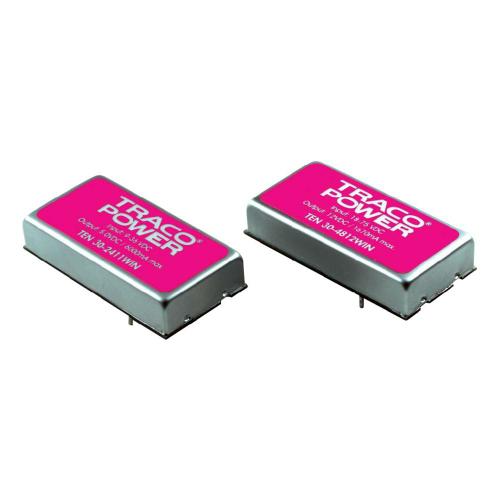

TRACOPOWER TEN 30-2410WIN Isolated Board Mount DC-DC Converter, Metal Case, Fixed, 1 Output, 9V, 36V, 30W, 3.3V

The is a high performance 30W DC-DC Converter Module featuring ultra wide 4:1 input voltage range of 9 to 36VDC in a compact low profile case with industry-standard footprint. Standard features include 3.3VDC/7.5A output, remote ON/OFF, output voltage trimming, overvoltage protection, under-voltage lockout, over temperature and short-circuit protection. This device is suitable for use in battery operated equipment and many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.

.

Adjustable output voltage

.

1500VDC I/O isolation voltage

.

86% Typical efficiency

.

24VDC Nominal input voltage
