TDR 3-1213WISM

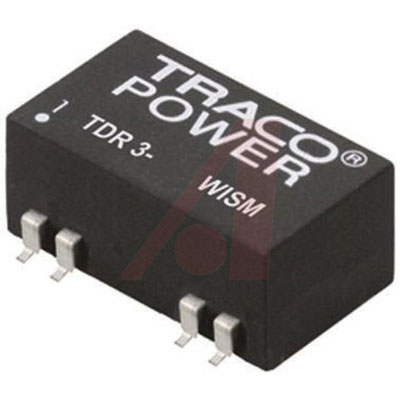

TDR 3-1213WISM图片1
TDR 3-1213WISM图片2
TDR 3-1213WISM图片3
TDR 3-1213WISM图片4
TDR 3-1213WISM概述

TRACOPOWER TDR 3-1213WISM Isolated Board Mount DC-DC Converter, Regulated, Fixed, Adjustable, 1 Output, 4.5V, 18V, 3W

The TDR 3WI series compact 3W DC/DC Converter with 4:1 input voltage ranges and tightly regulated output voltages even under no load conditions. It works with high efficiency over the full load range and come with a remote ON/OFF input. The usability in temperature ranges of up to 85°C, continuous short-circuit protection and excellent immunity against environmental influences make this converter very reliable. This converter is the ideal solution for space critical high end applications.

.
Fully regulated outputs
.
Low ripple and noise
.
No minimum load required
.
Fully RoHS compliant
.
1600VDC I/O isolation
TDR 3-1213WISM中文资料参数规格
技术参数

输出接口数 1

输出电压 15 V

输出功率 3 W

输入电压DC Max 18 V

输入电压DC Min 4.5 v

输出电流Max 200 mA

输出功率Max 3 W

封装参数

安装方式 Surface Mount

外形尺寸

宽度 12.8 mm

高度 8.7 mm

其他

产品生命周期 Active

包装方式 Tube

制造应用 Consumer Electronics, Sensing & Instrumentation, Communications & Networking, Industrial

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买TDR 3-1213WISM
型号: TDR 3-1213WISM
制造商: Traco Electronic
描述:TRACOPOWER TDR 3-1213WISM Isolated Board Mount DC-DC Converter, Regulated, Fixed, Adjustable, 1 Output, 4.5V, 18V, 3W
