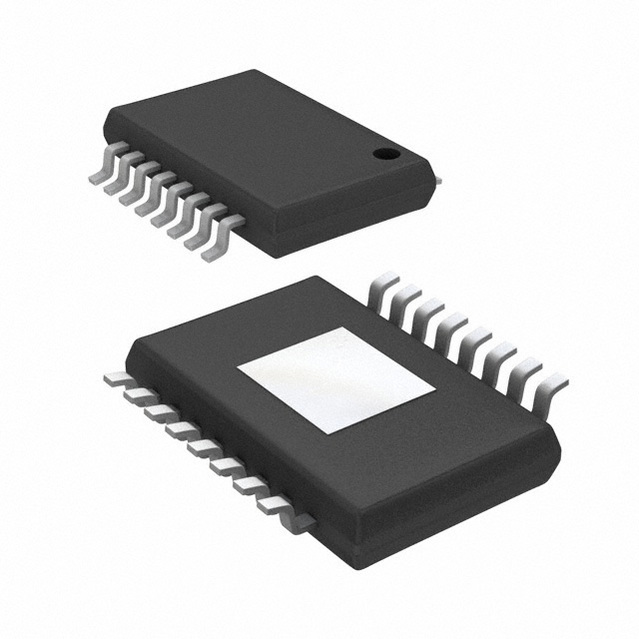

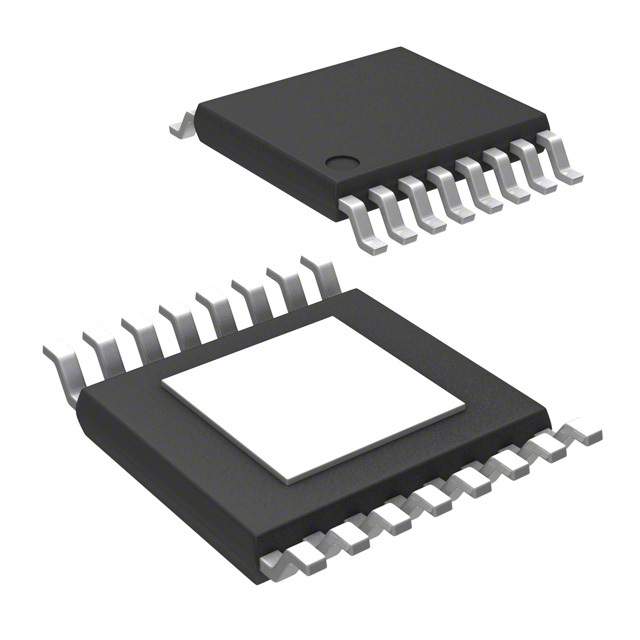

TEXAS INSTRUMENTS TPS40055PWPG4 直流/直流控制器, 电压模式, 8V至40V, 1路输出, 同步降压, 1MHz, HTSSOP-16
The is a synchronous step-down Buck Controller offers design flexibility with a variety of user-programmable functions, including soft-start, UVLO, operating frequency, voltage feed-forward, high-side current limit and loop compensation. It uses voltage feed-forward control techniques to provide good line regulation over the wide 4:1 input voltage range and fast response to input line transients. Near-constant modulator gain with input variation eases loop compensation. The externally programmable current limit provides pulse-by-pulse current limit, as well as hiccup mode operation using an internal fault counter for longer duration overloads.
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
频率 520 kHz
电源电压DC 8.00V min
输出接口数 1
输入电压DC 24.0 V
输出电压 0.7V ~ 35V
输出电流 20.0 A
针脚数 16
输入电流 5.00 mA
静态电流 1.50 mA
调节输出数 1
开关频率 1 MHz
过温保护 Yes
拓扑结构 Buck
占空比 94 %
输入电压Max 40 V
输入电压Min 8 V
最大占空比 0.94
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 8V ~ 40V
电源电压Max 40 V
电源电压Min 8 V
输入电压 8V ~ 40V
安装方式 Surface Mount
引脚数 16
封装 HTSSOP-16
封装 HTSSOP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
