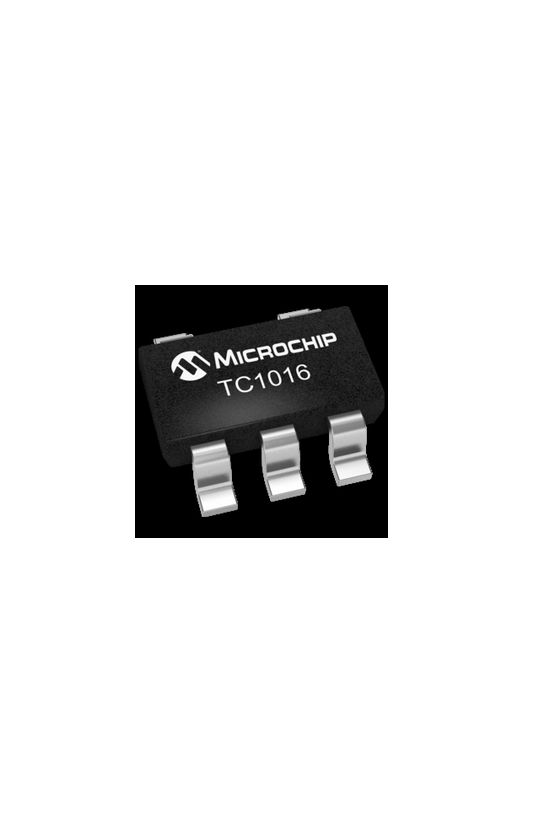

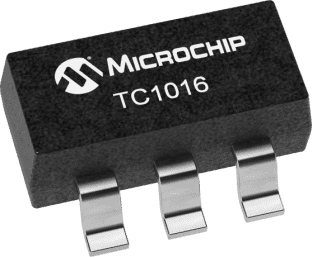

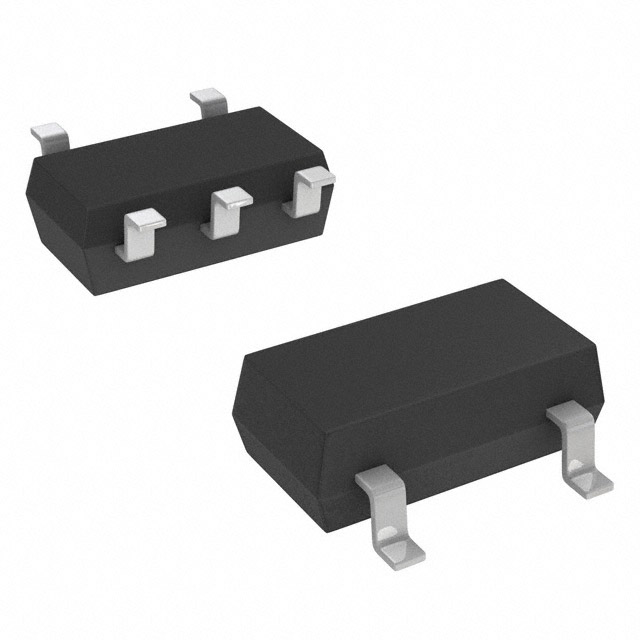

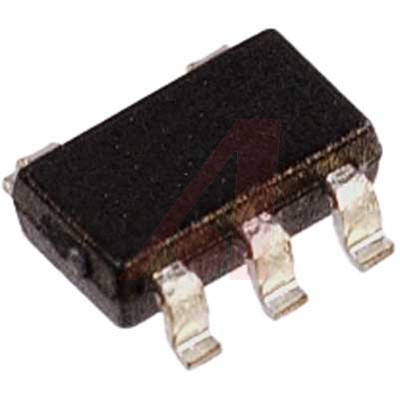

TC1016-1.85VCTTR

MICROCHIP  TC1016-1.85VCTTR  固定电压稳压器, LDO, 2.7V至6V, 150mV压差, 1.85V输出, 80mA输出, SOT-23-5

PMIC - 稳压器 - 线性 输出 80mA SOT-23-5

得捷:
IC REG LINEAR 1.85V 80MA SOT23-5

立创商城:
TC1016-1.85VCTTR

e络盟:
MICROCHIP  TC1016-1.85VCTTR  固定电压稳压器, LDO, 2.7V至6V, 150mV压差, 1.85V输出, 80mA输出, SOT-23-5

艾睿:
Use this LDO TC1016-1.85VCTTR linear regulator from Microchip Technology to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.002@100uA|0.1@50mA|0.15@80mA V. It has an overall accuracy of ±0.5Typ %. This voltage regulation device&s;s single output can produce a current up to 0.08 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 6 V. With a fixed output that has a voltage of 1.85 V, this is power management at its best. At a load regulation of 0.23%Typ and line regulation of 0.01%/VTyp a constant current can be produced at the output of your circuit. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum dropout voltage is 0.2@50mA|0.3@80mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.

Allied Electronics:
80mA Tiny CMOS LDO With Shutdown

安富利:
LDO Regulator Pos 1.85V 0.08A 5-Pin SOT-23 T/R
