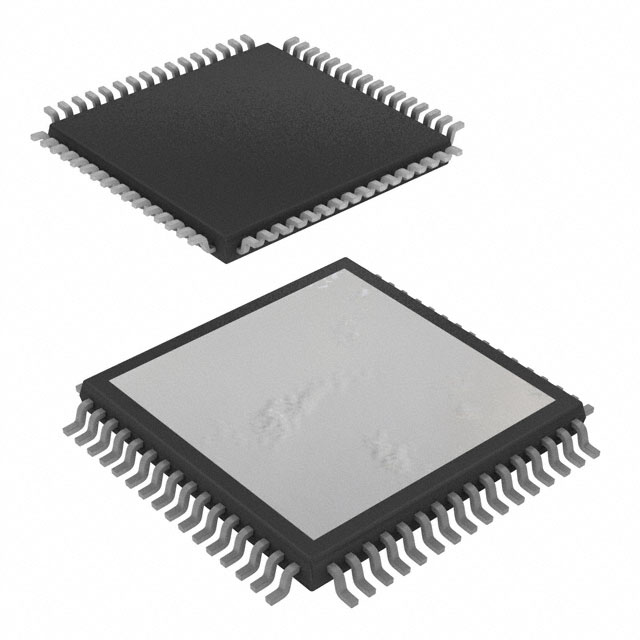

TAS5612APHDR

TEXAS INSTRUMENTS  TAS5612APHDR  音频功率放大器, D, 2通道, 125 W, 10.8V 至 34.1V, HTQFP, 64 引脚

The is a high performance digital input Class D Amplifier with integrated closed loop feedback technology known as PurePath™ HD with the ability to drive up to 125W achievable output power levels are dependent on the thermal configuration of the target application. A high performance thermal interface material between the package exposed heatslug and the heat sink should be used to achieve high output power levels. Stereo into 4 to 8R speakers from a single 32.5V supply. PurePath™ HD technology enables traditional AB-amplifier performance <0.03% THD levels while providing the power efficiency of traditional class D amplifier. Unlike traditional class D amplifier, the distortion curve only increases once the output levels move into clipping. PurePath™ HD technology enables lower idle losses making the device even more efficient.

.

PurePath™ HD enabled integrated feedback provides flat THD at all frequencies for natural sound

.

Click and pop free startup

.

Self-protection design with error reporting

.

EMI compliant when used with recommended system design

.

Pin compatible with TAS5631, TAS5616 and TAS561

.

80dB PSRR BTL, no input signal

.

>100dB A weighted SNR

.

>90% Efficient power stage with 60mR output MOSFETs

.

Green product and no Sb/Br
