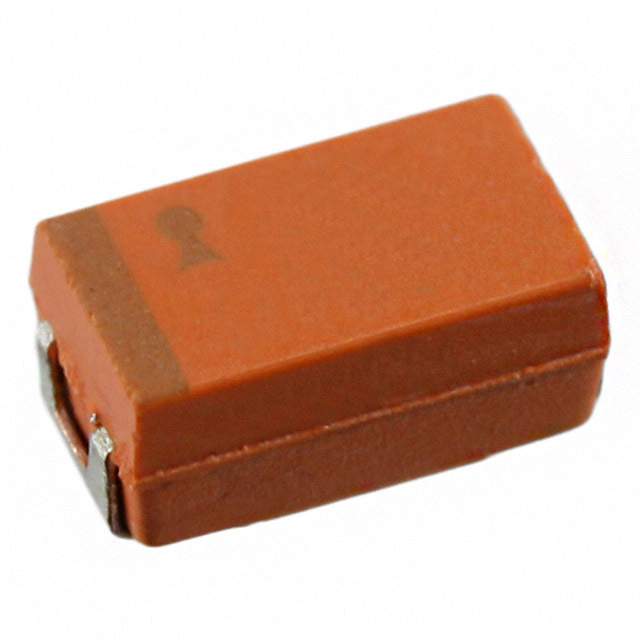

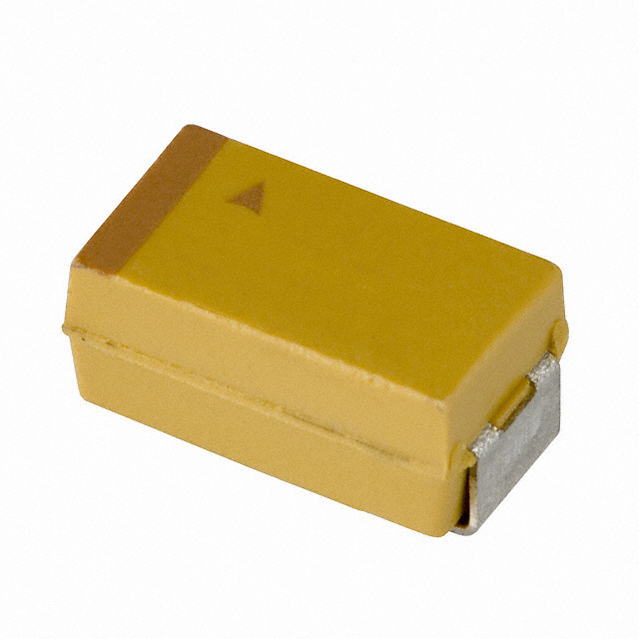

TAJ 系列 6.8 uF ±10 % 25 V 表面贴装 标准 钽贴片电容
* Capacitance Range: 0.1 μF to 2200 μF
* Available in Standard and Extended Ranges
* Operating Temperature: –55°C to +85°C
* Temperature Range: –55°C to +125°C
艾睿:
Composed from tantalum solid this TAJC685K025RNJ capacitor manufactured from AVX has a high capacitance compared to other capacitors. It can withstand a voltage of 25 VDC. Its leakage current is 1.7 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep. Its capacitance value is 6.8uF.
Allied Electronics:
Capacitor; Tantalum; Cap 6.8 uF; Tol 10%; Vol-Rtg 25 VDC; SMT; 6032; ESR 2 Ohms
安富利:
Cap Tant Solid 6.8uF 25V C CASE 10% 6 X 3.2 X 2.6mm SMD 6032-28 2 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 6.8uF 25V C CASE 10% 6 X 3.2 X 2.6mm SMD 6032-28 2 Ohm 125A?A℃ T/R
TME:

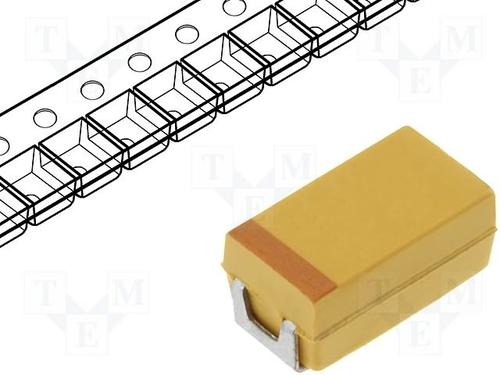

Capacitor: tantalum; 6.8uF; 25VDC; SMD; Case: C; 2312; ±10%
Verical:
Cap Tant Solid 6.8uF 25V C CASE 10% 6 X 3.2 X 2.6mm Inward L SMD 6032-28 2 Ohm 125C T/R
Newark:
# AVX TAJC685K025RNJ Surface Mount Tantalum Capacitor, 6.8 µF, 25 V, TAJ Series, ± 10%, 2312 [6032 Metric]
Win Source:
CAP TANT 6.8UF 25V 10% 2312
额定电压DC 25.0 V
工作电压 25 VDC
电容 6.8 µF
等效串联电阻ESR 2 Ω
容差 ±10 %
Q值 6.0
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装 6032
长度 6 mm
宽度 3.2 mm
高度 2.6 mm
封装 6032
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TAJC685K025RNJ AVX 艾维克斯 | 当前型号 | 当前型号 |
TAJC685K020RNJ 艾维克斯 | 类似代替 | TAJC685K025RNJ和TAJC685K020RNJ的区别 |
TAJC685M020RNJ 艾维克斯 | 类似代替 | TAJC685K025RNJ和TAJC685M020RNJ的区别 |
TAJC685M025RNJ 艾维克斯 | 类似代替 | TAJC685K025RNJ和TAJC685M025RNJ的区别 |
