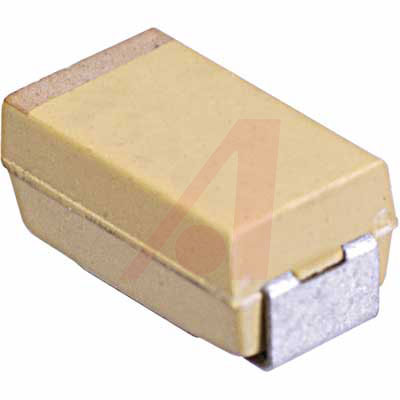

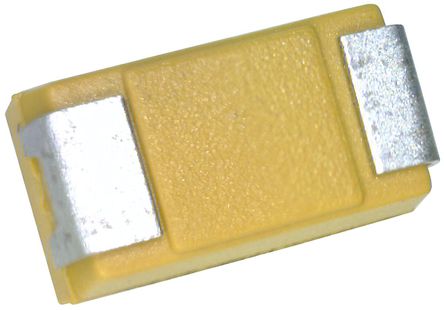

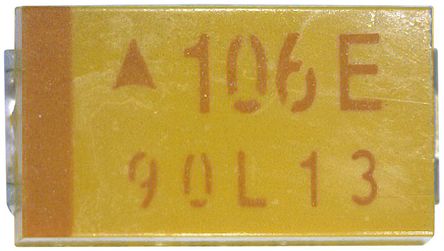

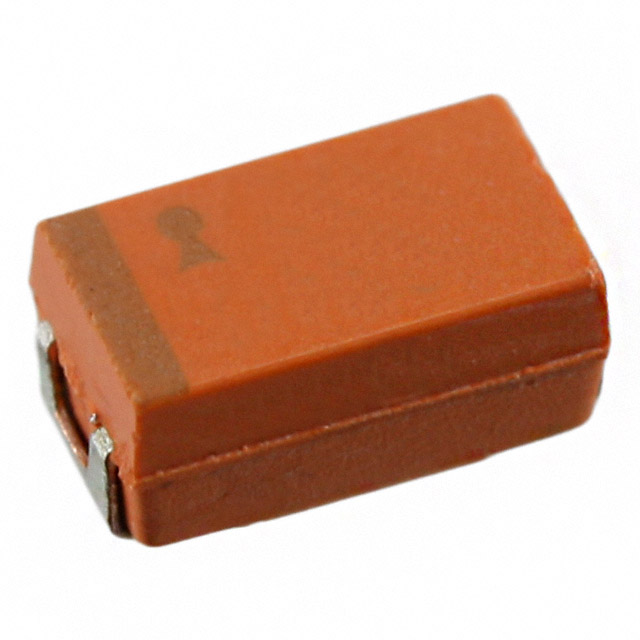

AVX TAJC106K025RNJ 表面贴装钽电容, TAJ系列, 10 µF, ± 10%, 25 V, 2312 [6032 公制], C
钽器
欧时:
### TAJ 标准系列 20 至 50V 直流TAJ 系列为通用表面安装片式钽电容器 提供 7 种外壳尺寸 提供薄型选件 CV 范围:0.10-2200μF / 2.5-50V 应用包括:通用低功率直流/直流和低压降调节器 尺寸 mm --- 外壳代码 | L | W | H | W1 | A 容差 | ±0.2 | +0.2/–0.1 | +0.2/–0.1 | +0.2 | +0.3/–0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6.0 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### 表面安装 85 ° C
得捷:
CAP TANT 10UF 10% 25V 2312
立创商城:
10uF ±10% 25V
贸泽:
Tantalum Capacitors - Solid SMD 25volts 10uF 10%
e络盟:
AVX TAJC106K025RNJ. 钽电容, 10uF, 25V, 1.8Ω, 2312
艾睿:
Do you need a capacitor for a sample and hold circuit? Then use this TAJC106K025RNJ solid tantalum capacitor from AVX for its low leakage current! It can withstand a voltage of 25 VDC. Its leakage current is 2.5 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 10uF. It has a tolerance of 10%. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep.
Allied Electronics:
Capacitor; Tantalum; Cap 10 uF; Tol 10%; Vol-Rtg 25 VDC; SMT; 6032; ESR 1.8 Ohms; CT
安富利:
The TAJ Series Standard Tantalum is a general purpose SMT chip tantalum series. It has seven available case sizes, and offers low profile options. The CV range is 0.10-2200μF / 2.5-50V.
Chip1Stop:
Cap Tant Solid 10uF 25V C CASE 10% 6 X 3.2 X 2.6mm SMD 6032-28 1.8 Ohm 125A?A℃ T/R
TME:
Capacitor: tantalum; 10uF; 25VDC; SMD; Case: C; 2312; ±10%; -55÷125°C
Verical:
Cap Tant Solid 10uF 25V C CASE 10% 6 X 3.2 X 2.6mm Inward L SMD 6032-28 1.8 Ohm 125C T/R
Newark:
# AVX TAJC106K025RNJ Surface Mount Tantalum Capacitor, 10 µF, 25 V, TAJ Series, ± 10%, 2312 [6032 Metric]
儒卓力:
**TC 10uF 25V 10% Case C **
Win Source:
10μF Molded Tantalum Capacitors 25V 2312 6032 Metric 1.8 Ohm 0.236" L x 0.126" W 6.00mm x 3.20mm
额定电压DC 25.0 V
工作电压 25 VDC
电容 10 µF
等效串联电阻ESR 1.8 Ω
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装 6032
长度 6 mm
宽度 3.2 mm
高度 2.6 mm
封装 6032
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Power Management, 工业, Industrial, 便携式器材, Consumer Electronics, Portable Devices, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TAJC106K025RNJ AVX 艾维克斯 | 当前型号 | 当前型号 |
TAJW106K025RNJ 艾维克斯 | 完全替代 | TAJC106K025RNJ和TAJW106K025RNJ的区别 |
TAJC106K025SNJ 艾维克斯 | 完全替代 | TAJC106K025RNJ和TAJC106K025SNJ的区别 |
TAJC106K025ANJ 艾维克斯 | 完全替代 | TAJC106K025RNJ和TAJC106K025ANJ的区别 |
