TAJD106K050RNJ

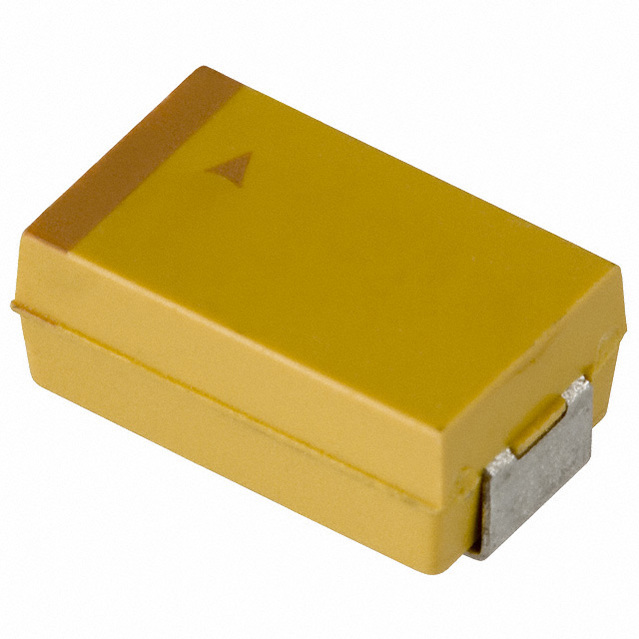

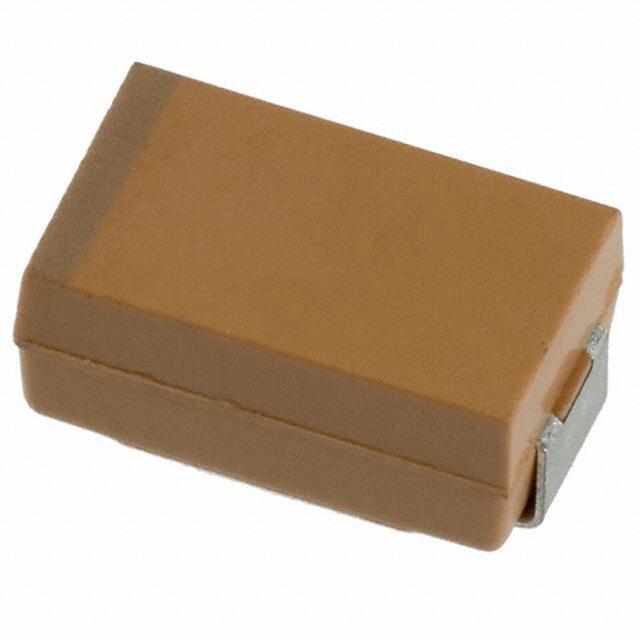

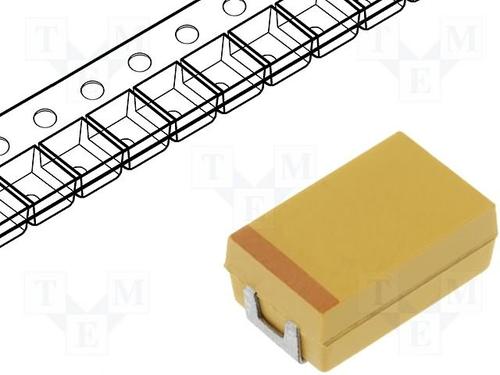

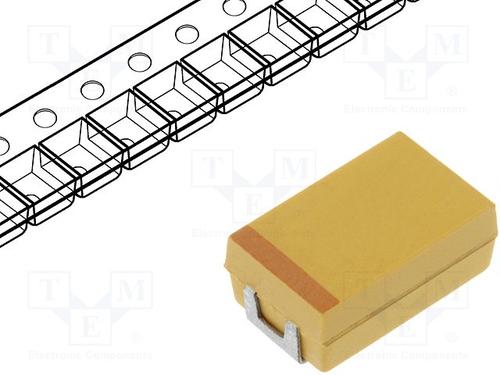

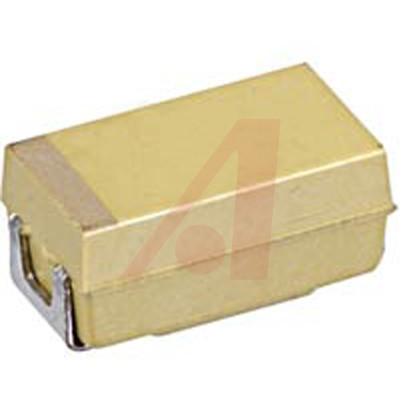

AVX  TAJD106K050RNJ  表面贴装钽电容, TAJ系列, 10 µF, ± 10%, 50 V, 2917 [7343 公制], D

钽器

欧时:
TAJ 标准系列 20 至 50V 直流TAJ 系列为通用表面安装片式钽电容器 提供 7 种外壳尺寸 提供薄型选件 CV 范围：0.10-2200μF / 2.5-50V 应用包括：通用低功率直流/直流和低压降调节器尺寸 mm --- 外壳代码 | L | W | H | W1 | A 容差 | ±0.2 | +0.2/–0.1 | +0.2/–0.1 | +0.2 | +0.3/–0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6.0 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 The TAJ Series Standard Tantalum is a general purpose SMT chip tantalum series. It has seven available case sizes, and offers low profile options. The CV range is 0.10-2200μF / 2.5-50V.General purpose SMT chip tantalum series 17 case sizes available, standard and low profile down to 1mm maximum height Low profile options available CV range: 0.10-2200μF / 2.5-50V J-lead construction

得捷:
CAP TANT 10UF 10% 50V 2917

立创商城:
10uF ±10% 50V

e络盟:
表面贴装钽电容, 10 µF, 50 V, 2917 [7343 公制], TAJ系列, ± 10%, -55 °C

艾睿:
Compared to other capacitors, this TAJD106K050RNJ tantalum solid capacitor from AVX provides a higher capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 50 VDC. Its leakage current is 5 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 7.3 mm long, 2.9 mm tall and 4.3 mm deep. Its capacitance value is 10uF.

Allied Electronics:
10uF SMD Solid MnO2 Tantalum Electrolytic Capacitor; 50 V dc +/-10%; TAJ Series

安富利:
Cap Tant Solid 10uF 50V D CASE 10% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.8 Ohm 125°C T/R

Chip1Stop:
Cap Tant Solid 10uF 50V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.8 Ohm 125C T/R

TME:
Capacitor: tantalum; 10uF; 50VDC; SMD; Case: D; 2917; ±10%; -55÷125°C

Verical:
Cap Tant Solid 10uF 50V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 0.8 Ohm 125C T/R

Newark:
Surface Mount Tantalum Capacitor, 10 µF, 50 V, TAJ Series, ± 10%, 2917 [7343 Metric]

儒卓力:
**TC 10uF 50V 10% Case D **

Win Source:
CAP TANT 10UF 50V 10% 2917
