带独立断路器POWER-良好的报告双通道热插拔电源控制器 DUAL HOT-SWAP POWER CONTROLLERS WITH INDEPENDENT CIRCUIT BREAKER AND POWER-GOOD REPORTING
Abrupt changes in the power supply can cause potential hazards to your circuit if you don"t have this positive voltage hot swap controller IC from Texas Instruments. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 3 V and a maximum of 5.5|13 V. This hot swap controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 3.00V min
输出接口数 2
输入电压DC 13.0 V
输出电压 21.0 V
供电电流 5 µA
通道数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 13 V
电源电压Min 3 V
输入电压 13 V
安装方式 Surface Mount
引脚数 20

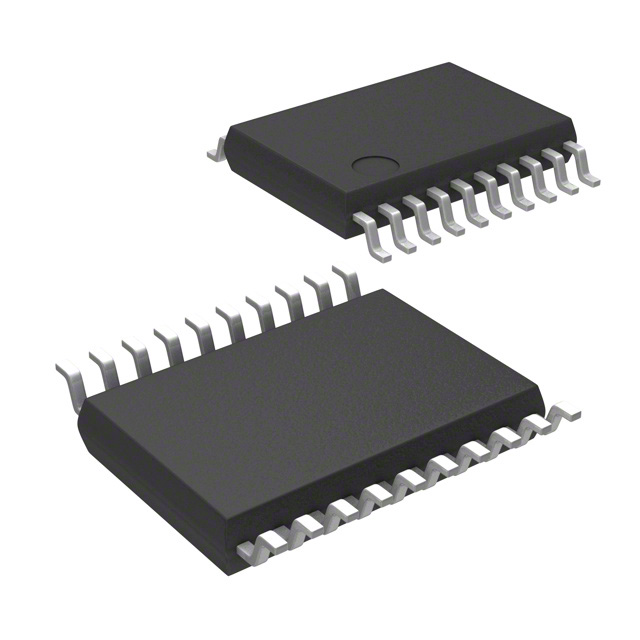

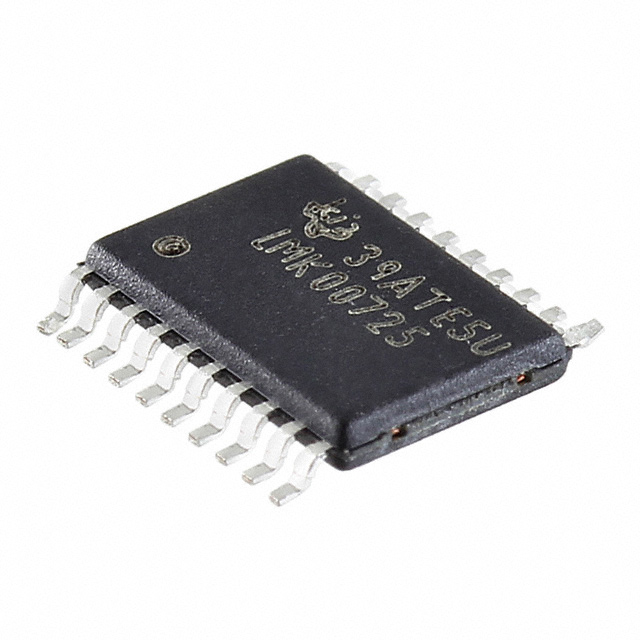

封装 TSSOP-20
高度 1.15 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2301IPW TI 德州仪器 | 当前型号 | 当前型号 |
TPS2301IPWR 德州仪器 | 完全替代 | TPS2301IPW和TPS2301IPWR的区别 |
TPS2301IPWG4 德州仪器 | 完全替代 | TPS2301IPW和TPS2301IPWG4的区别 |
TPS2301IPWRG4 德州仪器 | 完全替代 | TPS2301IPW和TPS2301IPWRG4的区别 |
