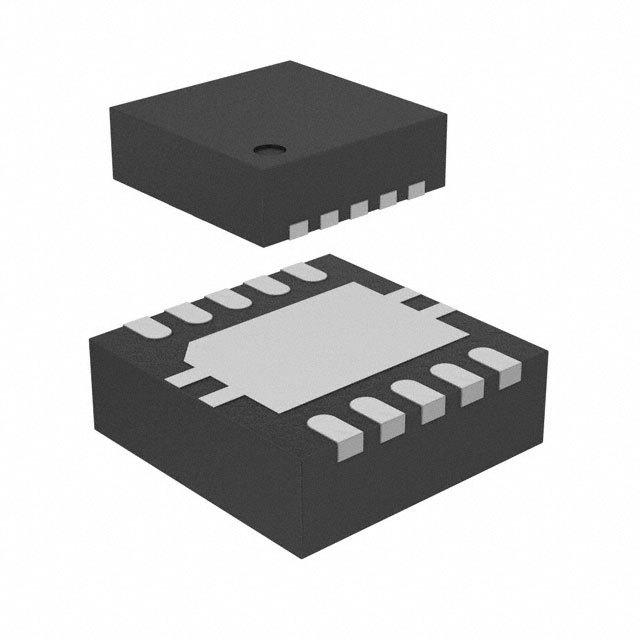

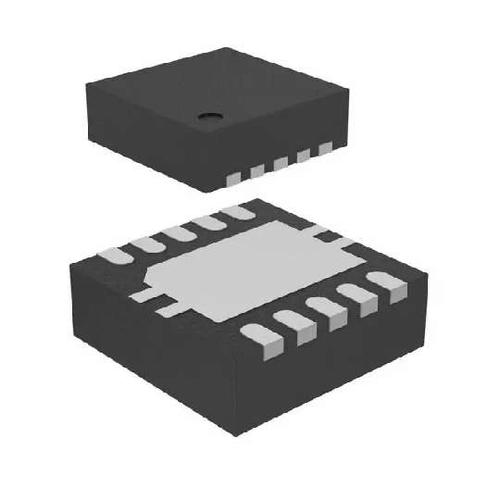

TEXAS INSTRUMENTS TPS259251DRCT 芯片, 电熔丝保护开关, 5V, VSON-10
Protect your circuit from many potential hazards caused by changes in the power supply with this positive voltage hot swap controller IC from Texas Instruments. Its typical operating supply voltage is 5 V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. This hot swap controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 4.50V min
输入电压DC 5.00 V
输出电流 5 A
针脚数 10
输出电流Max 5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±15 %
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 5 V
安装方式 Surface Mount
引脚数 10
封装 VFDFN-10
长度 3.1 mm
宽度 3.1 mm
高度 1 mm
封装 VFDFN-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS259251DRCT TI 德州仪器 | 当前型号 | 当前型号 |
TPS259251DRCR 德州仪器 | 功能相似 | TPS259251DRCT和TPS259251DRCR的区别 |
